Unitree Dex1-1 V2 Advanced Gripper with RGB Camera
Compatibility Notice: The Dex1-1 Grippers are only compatible with the G1 EDU+ (U2) and all higher-tier models.
Product Description

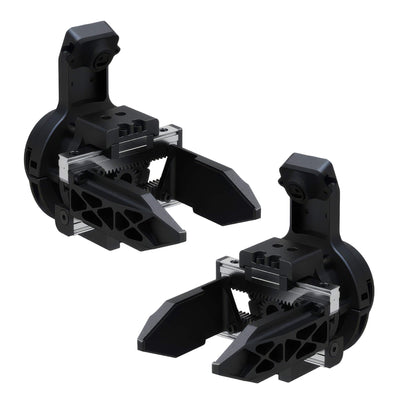

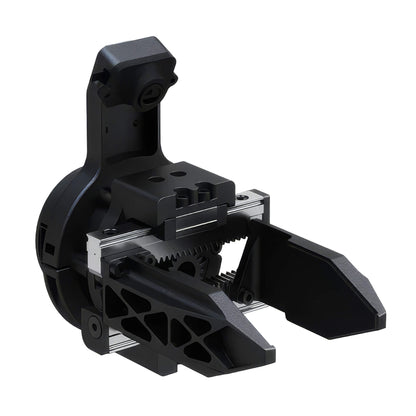

The Unitree DEX1-1 V2 Advanced is a two-finger robotic gripper designed for precise object manipulation on Unitree humanoid robots. Its parallel finger design provides stable gripping performance with adjustable force, high-speed actuation, and accurate position feedback, while the integrated RGB camera enables vision-assisted robotics development and object recognition workflows.

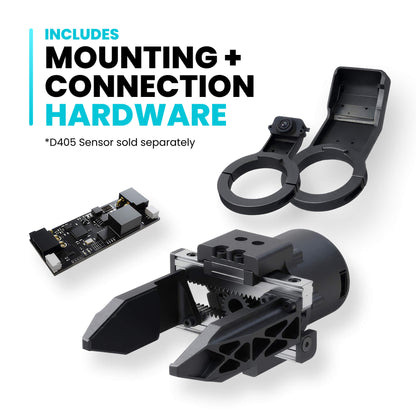

This package includes the DEX1-1 gripper, an RGB camera (FOV 160°), a dedicated RGB camera mount, a D405 camera mounting bracket (camera not included), a 485-to-USB conversion board, and required cables and accessories for integration with compatible robotics systems.
See other variant for configuration that includes depth sensing hardware.
Compatible with Unitree Humanoids
- G1 Edu+ (U2) and Higher Model Humanoid Robots
- H1 and H1-2 Humanoid Robots
- Future compatibility expected with upcoming platforms including H2 and R1 humanoid robots.
V2 Vision System
- Integrated RGB camera (FOV 160°) for visual object detection and recognition
- Supports vision-assisted robotics workflows including object identification and tracking
- Dedicated RGB camera mounting bracket included
- Includes additional D405 camera mounting bracket for optional depth sensor integration (camera not included)
Key Specifications:
Model: Dex1-1
Dimensions: 143 × 78 × 67 mm
Weight: 550 g
Stroke: 90 mm
Jaw length: 80 mm
Gripping force (adjustable): 5 to 120 N
Speed (adjustable): 50 to 375 mm/s
Position resolution (fingertip): 0.1 mm
Grasp load (form-fitting): 20 kg
Grasp load (friction): 5 kg
Full-stroke shortest closing time: 0.24 s
Communication protocol: High-speed RS485
Communication baud rate: 6 Mbps
Communication control frequency: 1000 Hz
Operating voltage: 24 V to 64 V (24/48 VDC recommended)
Static current: 0.03 A
Peak line current: 3.5 A
Motor peak torque: 5 N·m
Motor maximum speed: 27 rad/s (with 64 V power supply)
Motor reduction ratio: 1:25
Motor encoder resolution: 15 bit
Motor encoder type: Absolute encoder
Motor status feedback: Angle, angular velocity, torque, temperature
Motor control instruction: Angle, angular velocity, torque, stiffness, damping
Recommended operating environment: −20°C to 60°C
Pairs well with
Buy it with:
Unitree Dex1-1 V2 Advanced Gripper with RGB Camera
Key Features
Precision Handling
The DEX1-1 delivers precise manipulation through its parallel jaw design, adjustable gripping force, and responsive motion control. Capable of delicately handling small components and positioning them with accuracy, it supports assembly, placement, and other fine robotics tasks.
Note: Video shown at 2X speed
Efficient Object Handling
The DEX1-1’s compact design and precise gripping make it well suited for tasks like sorting, placement, and repetitive object handling. Its responsive control enables reliable manipulation on its own, with optional vision and sensing hardware available in upgraded variants.
Note: Video shown at 2X speed
