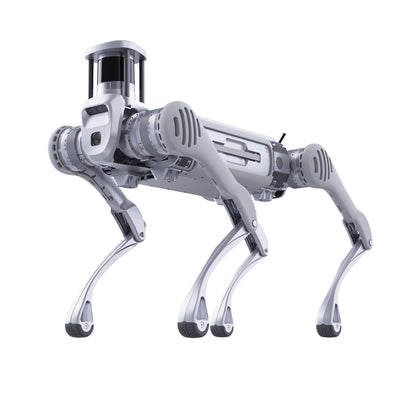

Unitree B2 Industrial Quadruped Robotic Dog
Introducing the Unitree B2, a cutting-edge industrial-grade quadruped robot engineered for high-speed mobility, exceptional load capacity, and advanced terrain adaptability. Designed to excel in complex environments, the B2 is ideal for applications such as industrial automation, power inspections, emergency rescue operations, and educational research.
Key Features:
-

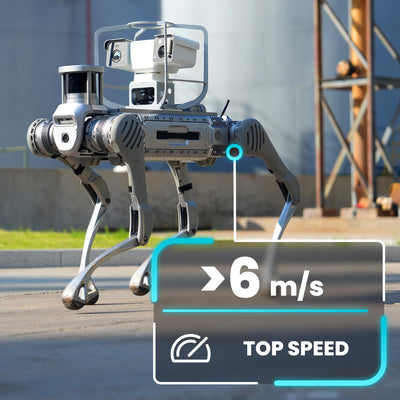

High-Speed Performance: Achieves speeds exceeding 6 m/s, positioning it among the fastest industrial quadruped robots available.
-
Robust Load Capacity: Supports a maximum standing load of 120 kg and a continuous walking load over 40 kg, enabling efficient transport of equipment and materials.
-
Extended Endurance: Capable of continuous operation for over 5 hours without load, and maintaining stable performance even when carrying a 20 kg load, ensuring reliability during prolonged missions.
-
Advanced Joint Performance: Equipped with self-developed motors delivering a peak torque of 360 N·m, enhancing flexibility and stability for complex industrial tasks.
-
All-Terrain Adaptability: Demonstrates superior obstacle-crossing ability, effortlessly navigating obstacles up to 40 cm in height, and maintaining stability on slippery or uneven surfaces.
-

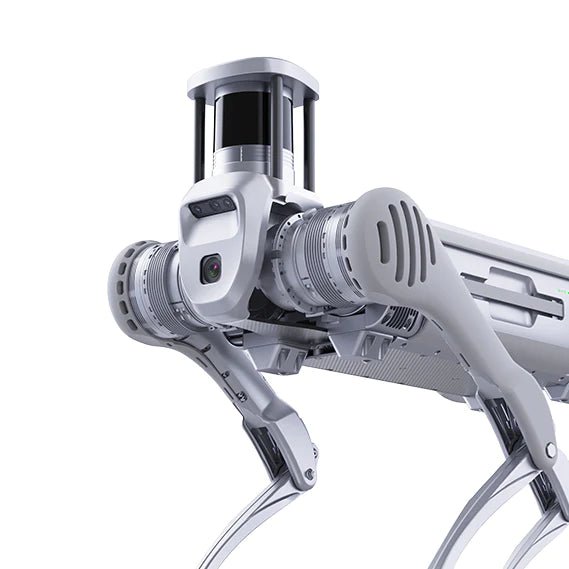

Comprehensive Sensing Capabilities: Outfitted with a variety of sensors, including 3D LiDAR, depth cameras, and optical cameras, providing enhanced environmental perception for safe and efficient task execution.
Technical Specifications:
-

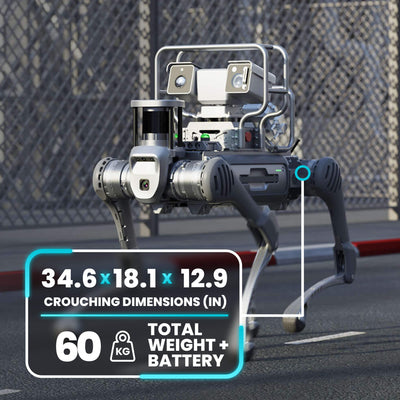

Dimensions:
- Standing: Approximately 1098 mm x 550 mm x 758 mm
- Lying Prone: Approximately 950 mm x 550 mm x 450 mm
-
Weight: Approximately 75 kg (including battery)
-
Battery Capacity: Greater than 2 kWh, voltage 58V
-
Ingress Protection: Rated at IP67, ensuring high resistance to dust and water ingress
-
Operating Temperature Range: From -20°C to 55°C
-
Control and Perception Options:
- Standard: Intel Core i5 (Platform Function), Intel Core i7 (User Development)
- Optional: Intel Core i7 and Jetson Orin NX (up to 3 devices)
The Unitree B2 sets a new standard in robotic mobility and functionality, making it an indispensable asset for professionals and researchers seeking a reliable and adaptable solution for complex tasks.
Industrial Grade Performance
The B2 is a powerhouse that is engineered to excel in the most demanding environments. Powered by the Nvidia Orin, this advanced AI-driven marvel can effortlessly tackle complex tasks with efficiency and precision.
The hardware has been optimized to allow the B2 to travel up to 13 mph, carry 50 lbs of weight, and handle extreme conditions (-20°C to 55°C), making it a reliable companion even in the harshest of environments.
Whether it's accelerating productivity in industrial settings or pushing the boundaries of robotic performance, the B2 sets the standard for excellence, delivering unmatched performance where it matters most.
Advance Terrain Capabilities

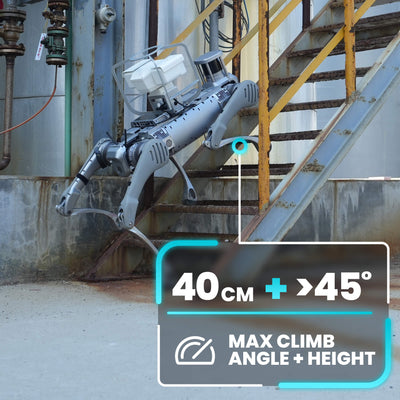

B2 was engineered to conquer diverse terrains. With the ability to ascend and descend staircases as steep as 45 degrees and with steps as large as 8-9 inches, traversing is a breeze. Its impressive climbing angle ensures seamless traversal across steep slopes and challenging landscapes. Additionally, boasting a maximum jump distance of 5 feet, it effortlessly overcomes obstacles with grace and efficiency. From rocky terrain to slippery surfaces, the Unitree B2 is primed for exploration and industrial tasks alike.
Detailed 3D Mapping

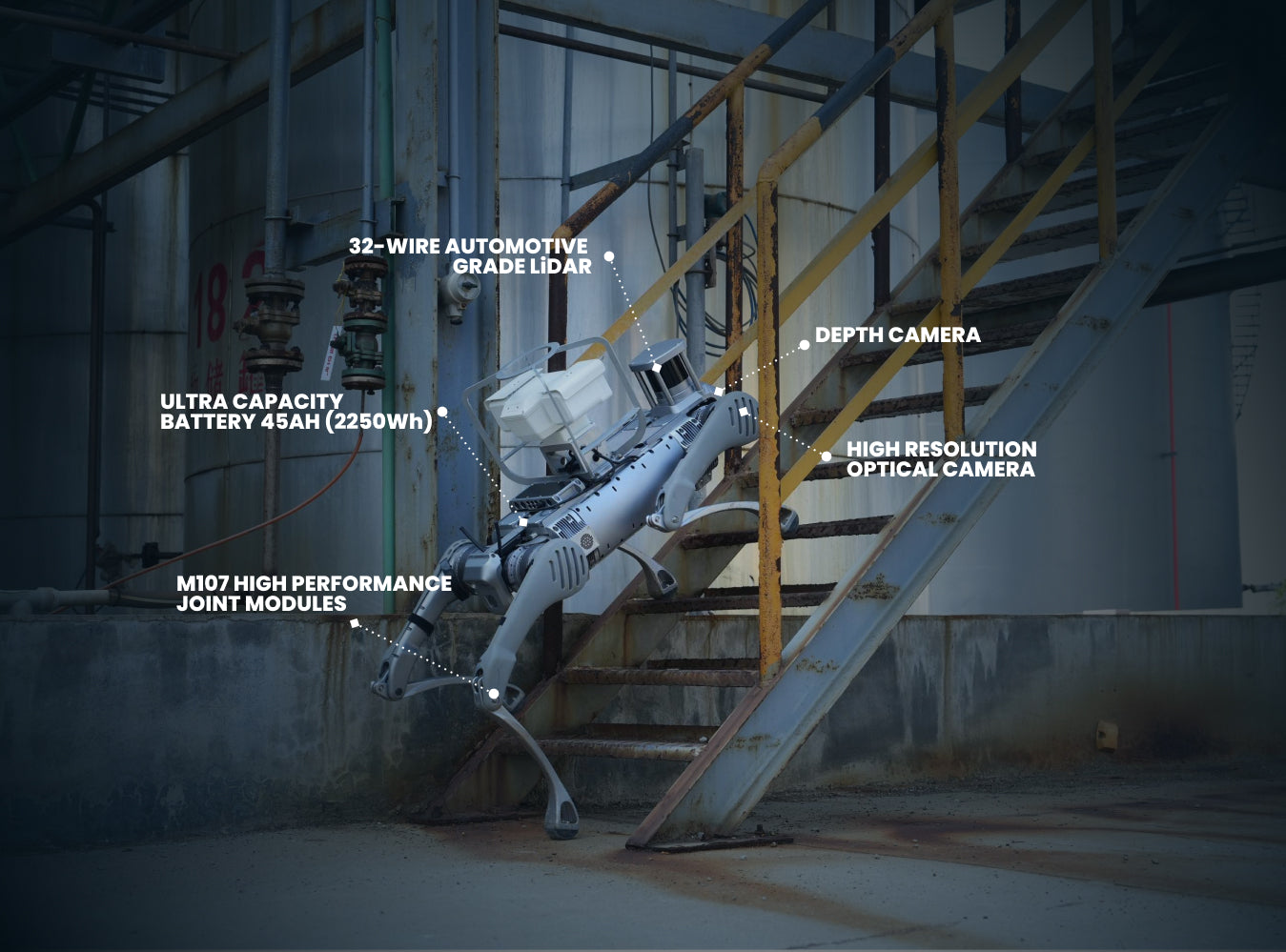

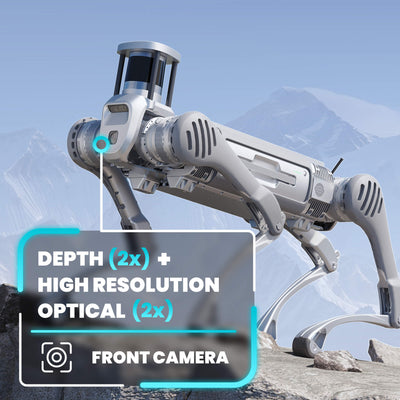

2 optical cameras, 2 depth cameras, and 1 3D LiDar to give users incredibly detailed and accurate mapping. Perfect for users who need accurate industrial inspection at any time, anywhere. Its infrared scanning capabilities can be used in various situations such as detecting anomalies, overheating components in machinery, or moisture intrusion in buildings.

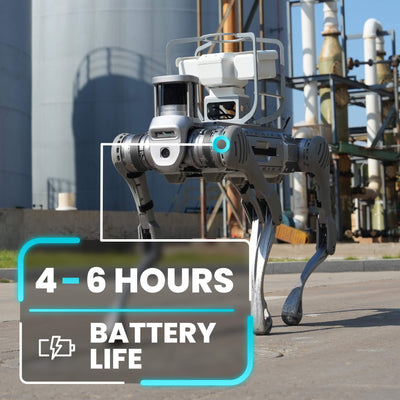

Incredible Battery Life, Autonomous Charging
With a robust battery capacity of 45Ah, the B2 boasts an impressive operational endurance of up to 6 hours, ensuring prolonged usage without interruption. Its autonomous + fast charging feature allows seamless fast self-recharging, eliminating the need for manual intervention and ensuring optimal uptime without any user intervention. Once the B2 recognizes its battery is low, it will auto-locate its charging station, so you can say goodbye to charging worries and embrace uninterrupted performance with the B2.
