The G1 EDU Ultimate B is an advanced model in Unitree’s G1 lineup, designed for cutting-edge robotics research and AI development. Featuring dual Dex3-1 force-controlled robotic hands with tactile sensors, enhanced articulation, and NVIDIA Jetson Orin 100 Tops computing power, this model is built for complex manipulation, human-robot interaction, and real-world AI applications.
Product Description

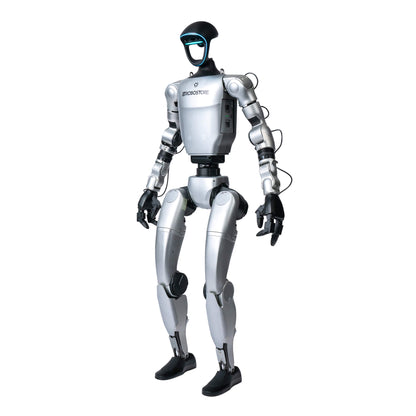

G1 EDU Ultimate B (U4): The Pinnacle of Humanoid Robotics
The G1 EDU Ultimate B is the most advanced model in Unitree’s G1 EDU lineup, designed for cutting-edge robotics research and AI development. Featuring dual Dex3-1 force-controlled robotic hands with tactile sensors, enhanced articulation, and NVIDIA Jetson Orin 100 Tops computing power, this model is built for complex manipulation, human-robot interaction, and real-world AI applications.

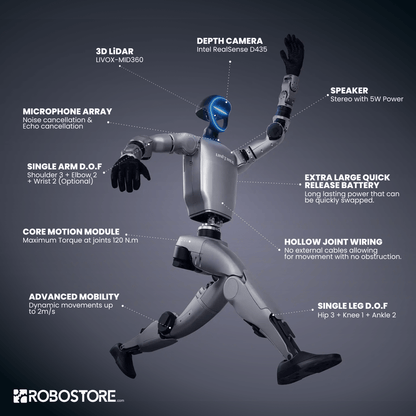

With 42 degrees of freedom (DOF), 3 degrees in the waist, and integrated 3D LiDAR and depth cameras, the Ultimate B enables precise movement, object recognition, and real-time environmental awareness. This platform provides researchers and educators with the tools to push the boundaries of humanoid robotics.
Key Features of the G1 EDU Ultimate B (U4)

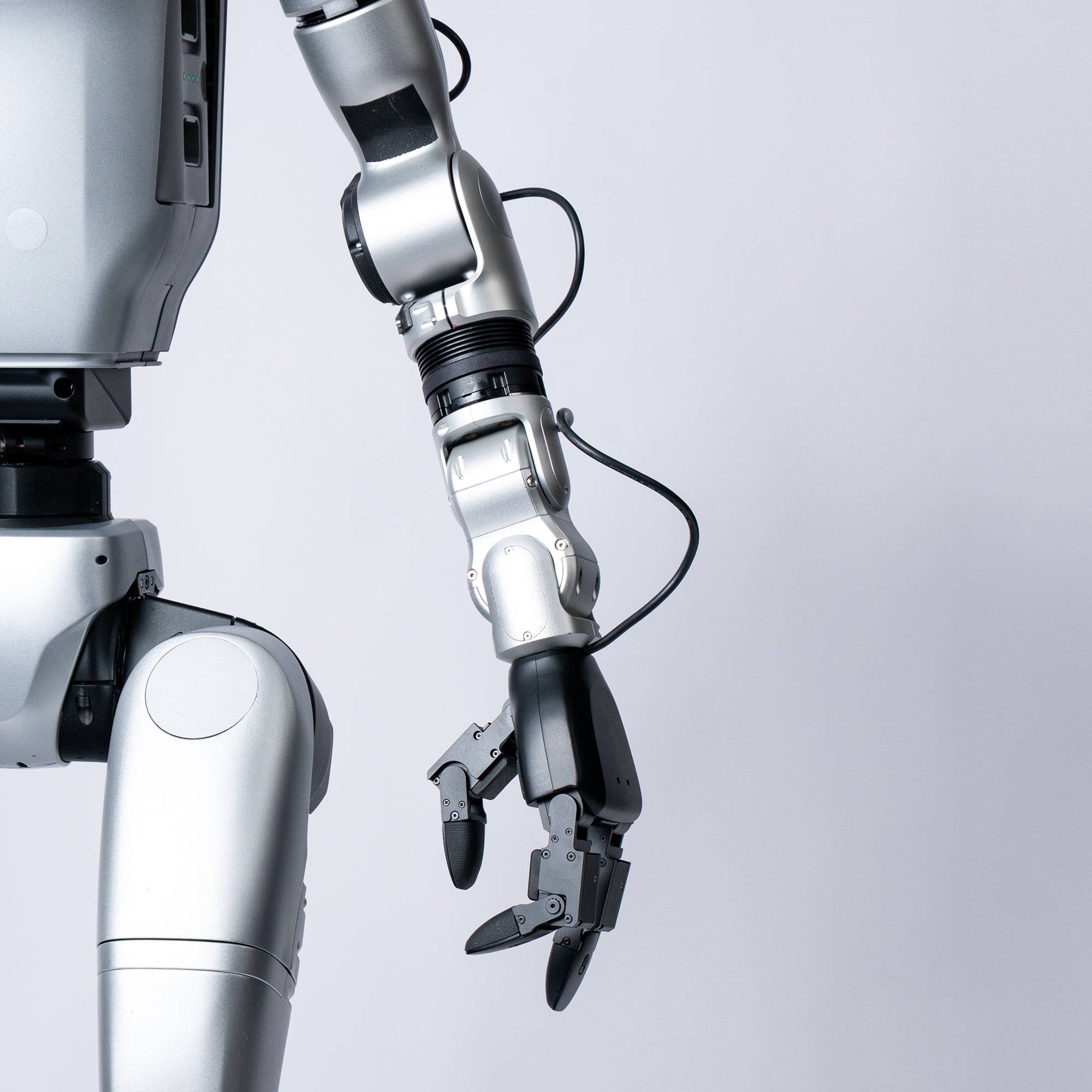

- Dex3-1 Force-Controlled Hands – 3-finger robotic hands designed for advanced object manipulation and precision grip.

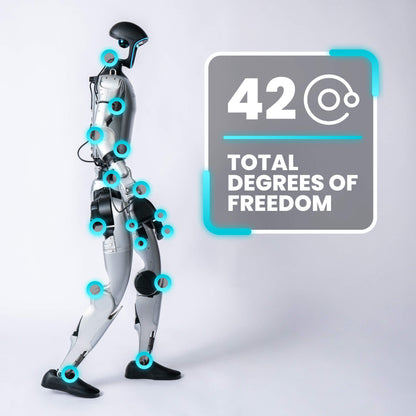

- Enhanced Mobility & Control – 42 degrees of freedom (DOF), including 3 degrees of motion in the waist for dynamic movement.
- AI-Powered Performance – Equipped with NVIDIA Jetson Orin 100 Tops for real-time AI processing and machine learning applications.
- Integrated Perception System – Features 3D LiDAR and depth cameras for environmental mapping and object recognition.
- Optimized Battery Life – Up to 2 hours of continuous operation for extended research sessions.
- Durable, Modular Design – Aluminum alloy construction with a customizable framework for AI and robotics research.
What Sets the G1 EDU Ultimate B Apart

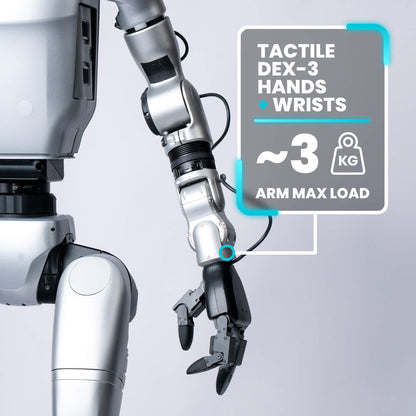

- Advanced Dexterity – Equipped with force-controlled robotic hands for precision grip and object handling.
- Maximized Degrees of Freedom – Additional articulation in the waist and arms for greater flexibility and movement.
- Comprehensive AI & Perception – High-powered computing and integrated sensors enable advanced AI-driven applications.
Expand the G1 EDU Ultimate B’s Capabilities
The G1 EDU Ultimate B (U4) is compatible with the Inspire Robots RH56DFQ Dexterous Hands (SKU: RH56DFQ), offering an upgrade for researchers requiring full 5-finger manipulation and advanced dexterity.
For those seeking the highest level of humanoid robotics, the G1 EDU Ultimate B delivers unparalleled control, dexterity, and AI performance—perfect for cutting-edge research and development. Check the comparison chart below to see how it compares with other G1 EDU models.
Pairs well with
Buy it with:
Unitree G1 EDU Ultimate B Robotic Humanoid (U4)
NVIDIA Jetson Orin NX 16gb
Degrees of Freedom
Max. Battery Life
G1 ULT. A Specifications
Computing
Main CPU:
8-core high-performance processor
High Computing Power Module:
NVIDIA Jetson Orin NX 16gb, 100 TOPS
Secondary Development Support:
Supported
Hardware
Chassis & Frame
- Hand Type: Dex3 Hands With Wrists + Tactile Sensors

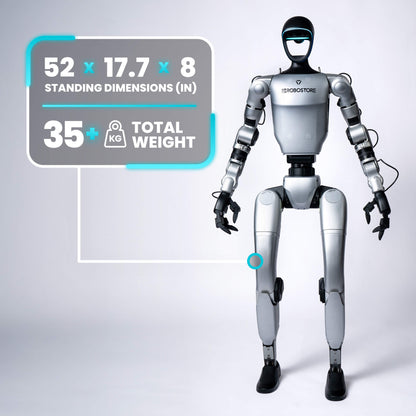

- Dimensions L x W x H (Standing): 1320 x 450 x 200 mm
- Dimensions (Crouching): 690 x 450 x 300 mm
- Weight (with Battery): 35+ kg
- Materials: Aluminum alloy and high-strength engineering plastic
Battery
- Battery Capacity: 9000 mAh (quick release)

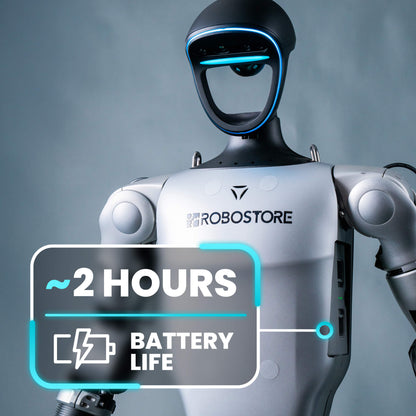

- Battery Life: ~2 hrs
- Charging Adapter: 54V / 5A
Performance
Top Speed:
2 m/s
Max joint Torque:
Knee: 120 N·m
Arm Max Load:
~3 kg
Mechanical
Degrees of Freedom (DOF):
- Total DOF: 42
- Single Hand DOF: 7
- Head DOF: 0
- Wrist DOF: 3
- Arm DOF: 5
- Leg DOF: 6
- Waist DOF: 3
Joint Motors & Build:
- Joint Output Bearing:
Industrial-grade crossed roller bearings; high precision, high load capacity - Joint Motor:
Low inertia high-speed internal rotor PMSM; better response speed and heat dissipation - Calf + Thigh Length: 0.6 m
- Arm Span: 0.05 m
Joint Movement Ranges:
- Waist: Z ±155°
- Knee: 0–165°
- Hip: P ±154°, R −30–170°, Y ±158°
- Wrist: P ±92.5°, Y ±92.5°
Cameras & Sensors
- 3D LiDAR: LIVOX MID-360
- Depth Camera: Intel RealSense D435i
- Tactile Sensors on Hands: Yes
Audio & Connectivity
- Wi-Fi: Wi-Fi 6
- Bluetooth: Bluetooth 5.2
- Remote Control Option: Yes
- Microphone Array: 4-mic array with noise and echo cancellation
- Built-in Speaker: 5W Stereo Speaker
- Voice Function: Yes
Features
- OTA Upgrade System: Yes
- Manual Controller: Yes
- Hollow Joint Wiring: Yes
- Joint Encoder: Dual encoder
- Cooling System: Local air cooling
- Warranty Period: 18 months
Accessories Compatibility
- Dex3 Hands: Yes (Not Included)
- Dex3 Hands w/ Tactile Sensors: Yes (Included)
- Inspire 5-Finger Hands: Yes (Not Included)
- Dex5 Hands: Yes (Not Included)
What's Included:
G1 ULT.B (U4) Humanoid
Dex3 Hands With Tactile Sensors
Remote Control
G1 Battery (1x)
18 Month Warranty
The G1 ULT. B
Feel the Difference with Tactile-Enabled Control
The G1 EDU Ultimate B includes all the features of the Ultimate A—42 total degrees of freedom, articulated wrists, and multi-jointed DEX 3 hands—but adds tactile sensors for enhanced real-world awareness and fine control. These sensors enable a higher level of precision in object handling, making this model ideal for cutting-edge research in haptics, human-robot interaction, and physical AI applications.
Key Features

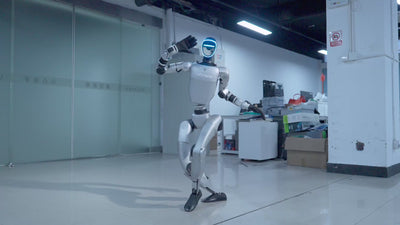

Pre-Programmed Humanoid Movements
The G1 ULT. B is a fully bipedal humanoid robot preloaded with walking, dancing, and self-righting actions — no coding required. Just turn it on and it performs realistic movements right out of the box.

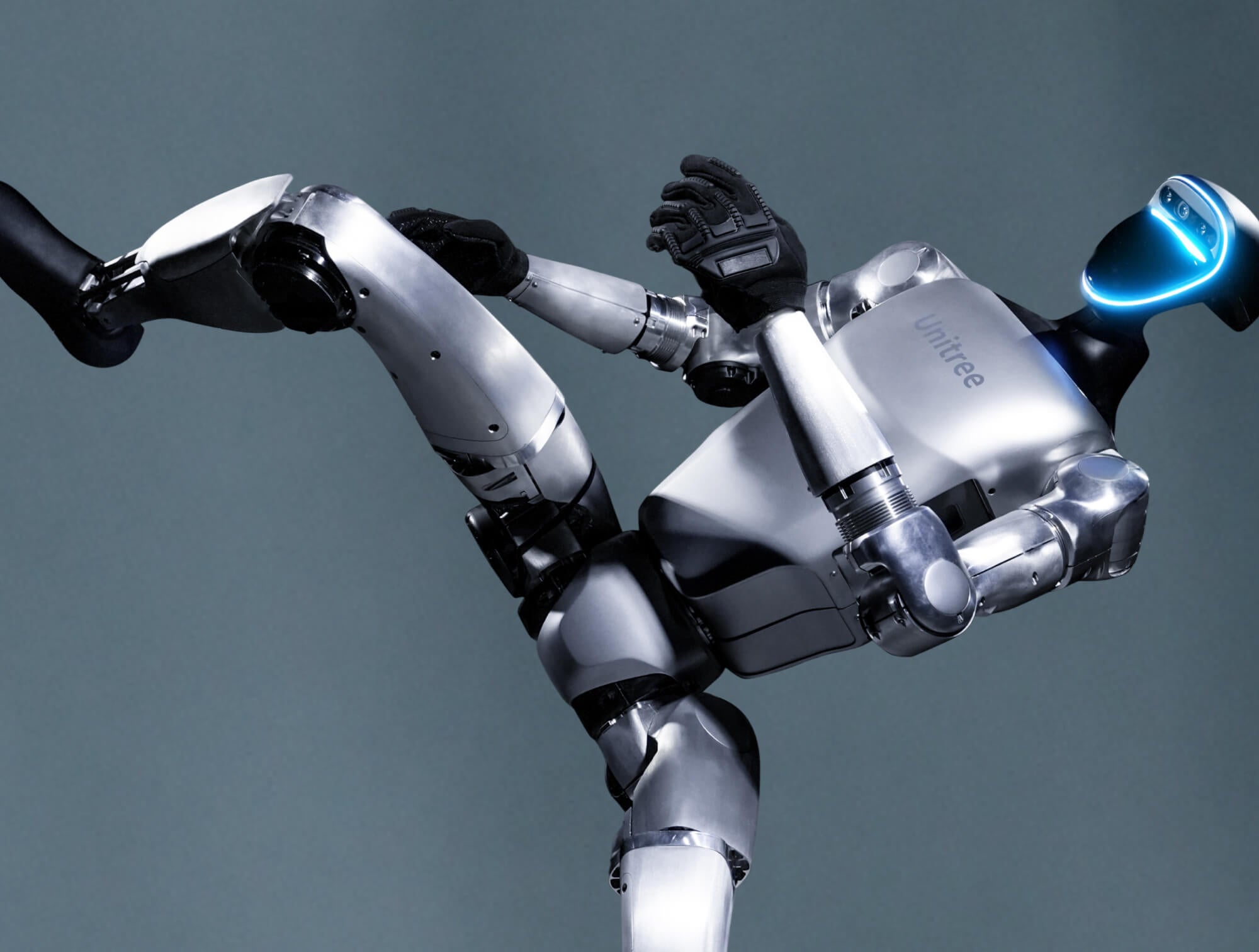

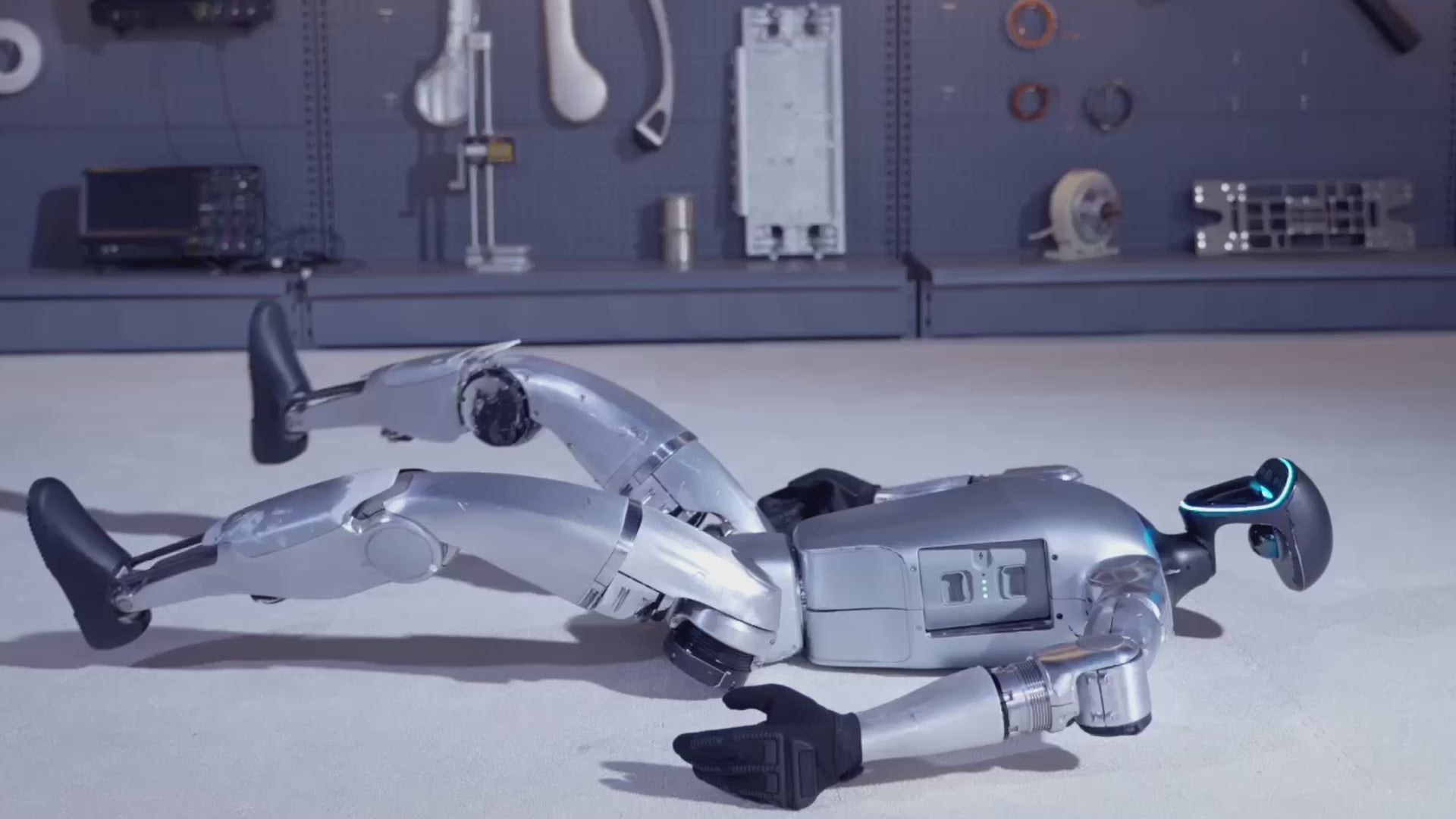

Agile, Lightweight, and Shock-Resistant

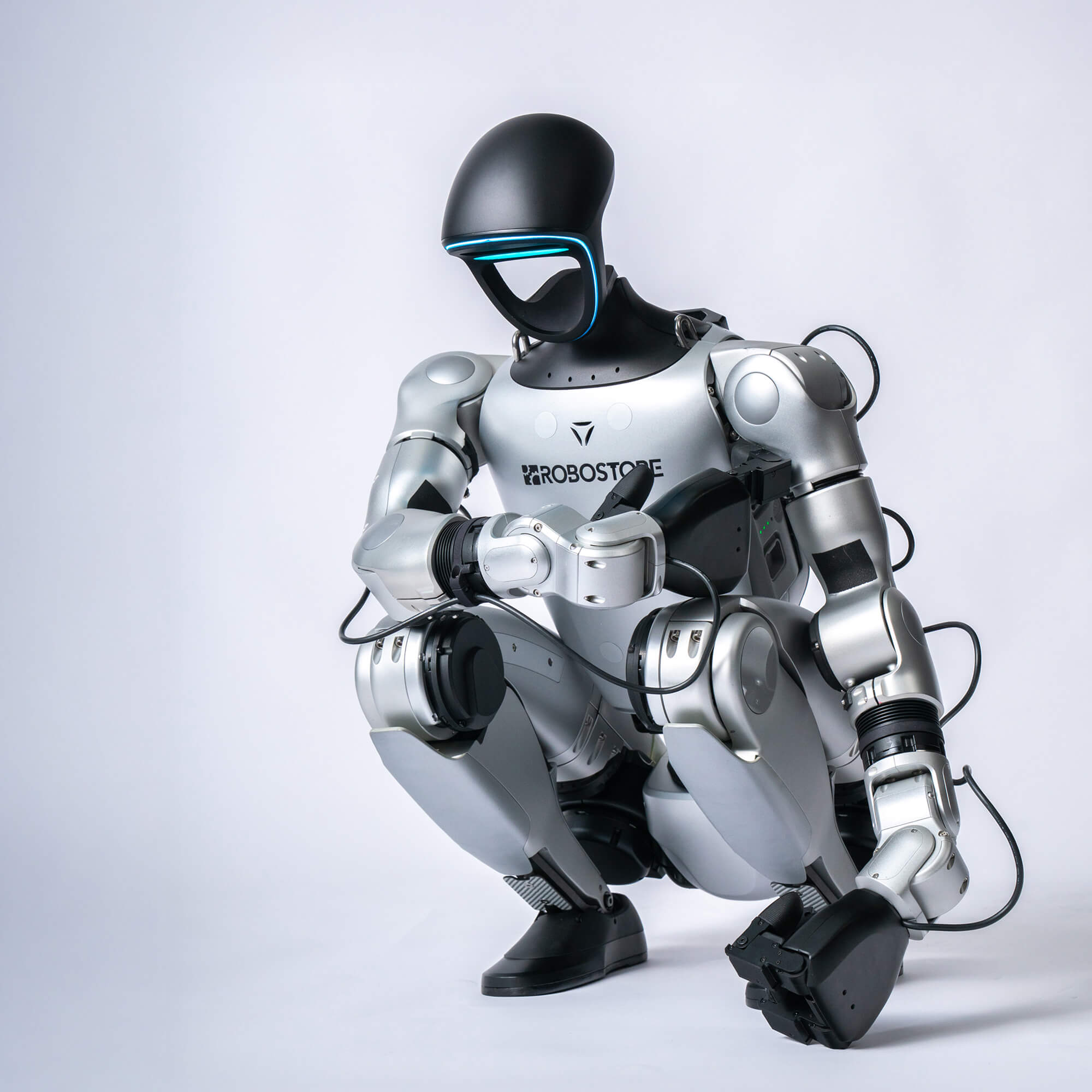

Built for resilience, the G1 ULT. B humanoid robot maintains balance, recovers from falls, and folds down for easy transport. Its compact frame and wide joint range deliver agile motion in real-world environments.

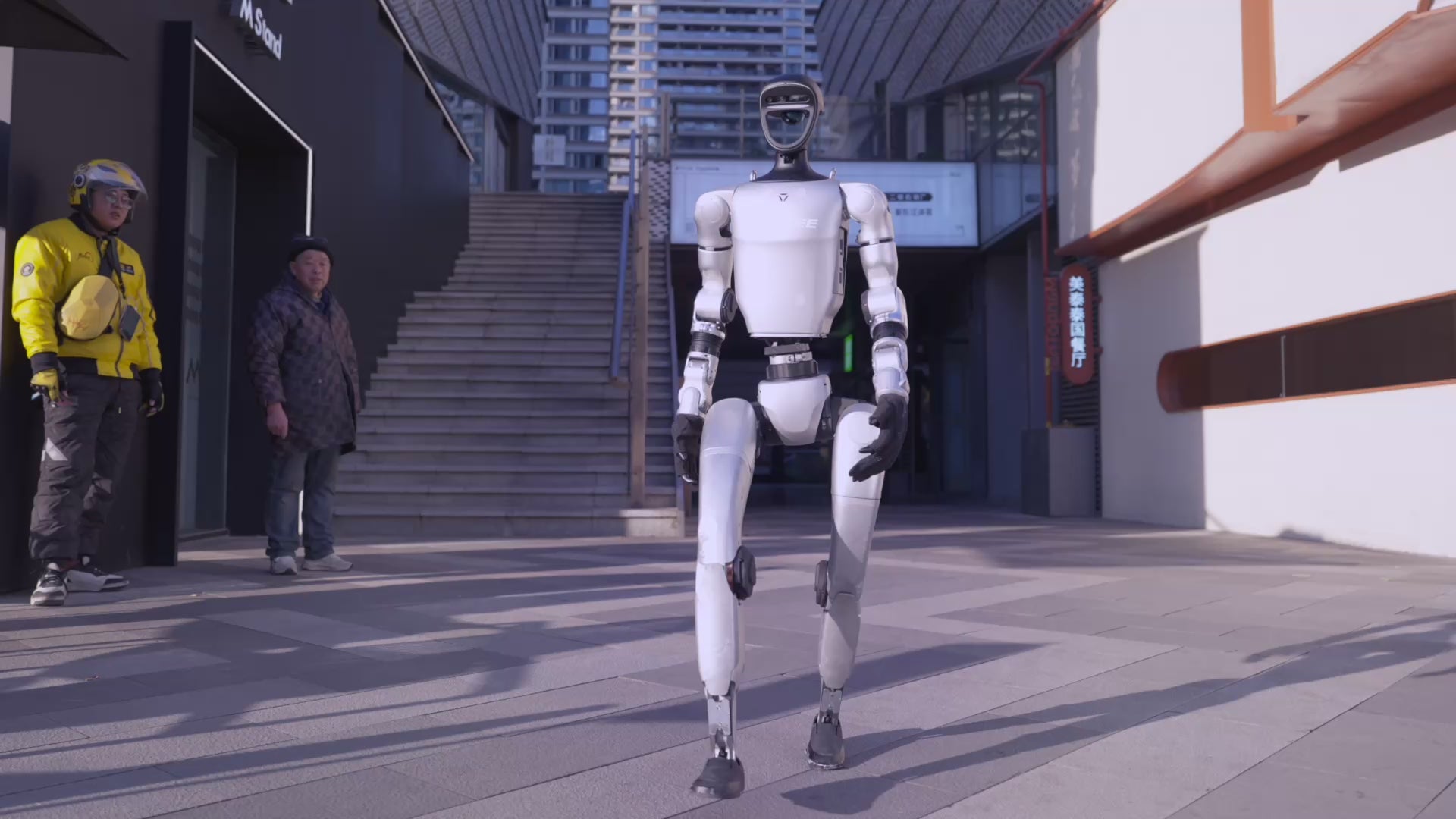

Autonomous Navigation with 360° Perception
Using integrated LiDAR and a depth-sensing camera, the G1 ULT. B autonomously navigates basic terrain with obstacle awareness and spatial detection — ideal for demo, research, or indoor/outdoor tests.
Built for Developers, Researchers, and Educators

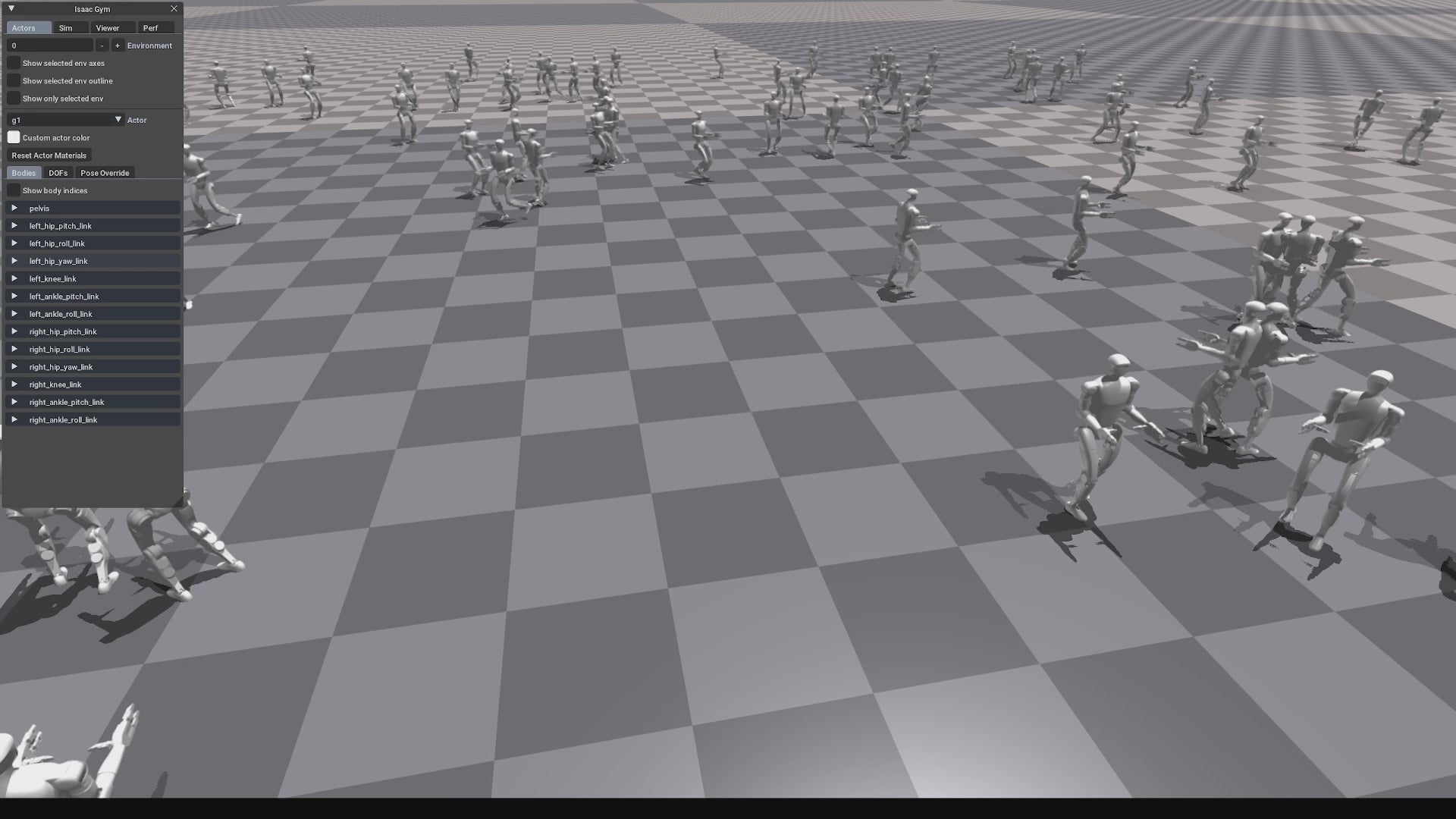

The G1 ULT. B includes the NVIDIA Jetson Orin 100 TOPS module, enabling high-performance computing, secondary development, and custom coding. Compatible with ROS, open-source SDKs, and simulation tools for rapid prototyping and deployment.

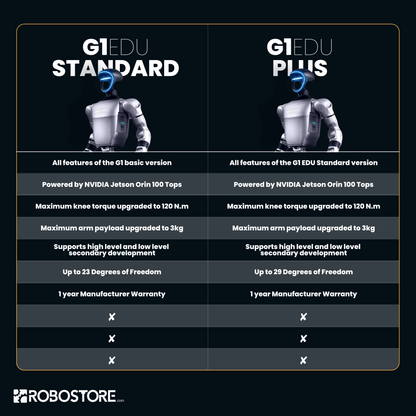

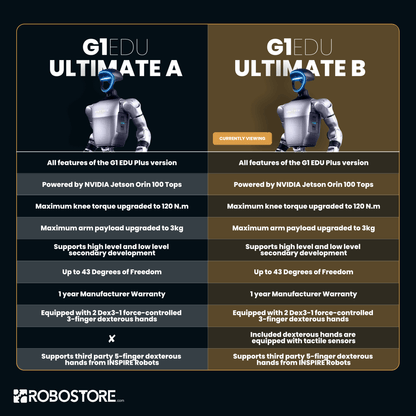

Quick Compare G1 Models
Key differences between G1 models include hand type, total degrees of freedom, computing power, and support for secondary development. See the comparison below for a quick overview, and visit each product page for full specifications.
Dex3 Hands with Wrists
Dex3 Hands with Wrists
+ Tactile Sensors
Inspire 5-Finger Hands
+ Tactile Sensors
Yes
Yes
Yes
NVIDIA Jetson Orin NX 16gb, 100 TOPS
NVIDIA Jetson Orin NX 16gb, 100 TOPS
NVIDIA Jetson Orin NX 16gb, 100 TOPS
Knee: 120 N·m
Knee: 120 N·m
Knee: 120 N·m
~3 kg
~3 kg
~3 kg
42
42
40
7
7
6 (+ 12 Joints)
3
3
3
LIVOX MID-360
LIVOX MID-360
LIVOX MID-360
Intel RealSense D435i
Intel RealSense D435i
Intel RealSense D435i
- Wi-Fi 6
- Bluetooth 5.2
- 4-mic array
- 5W Stereo Speaker
- Voice Functionality
- Remote Control Optional
- Wi-Fi 6
- Bluetooth 5.2
- 4-mic array
- 5W Stereo Speaker
- Voice Functionality
- Remote Control Optional
- Wi-Fi 6
- Bluetooth 5.2
- 4-mic array
- 5W Stereo Speaker
- Voice Functionality
- Remote Control Optional
18 Months
18 Months
18 Months
