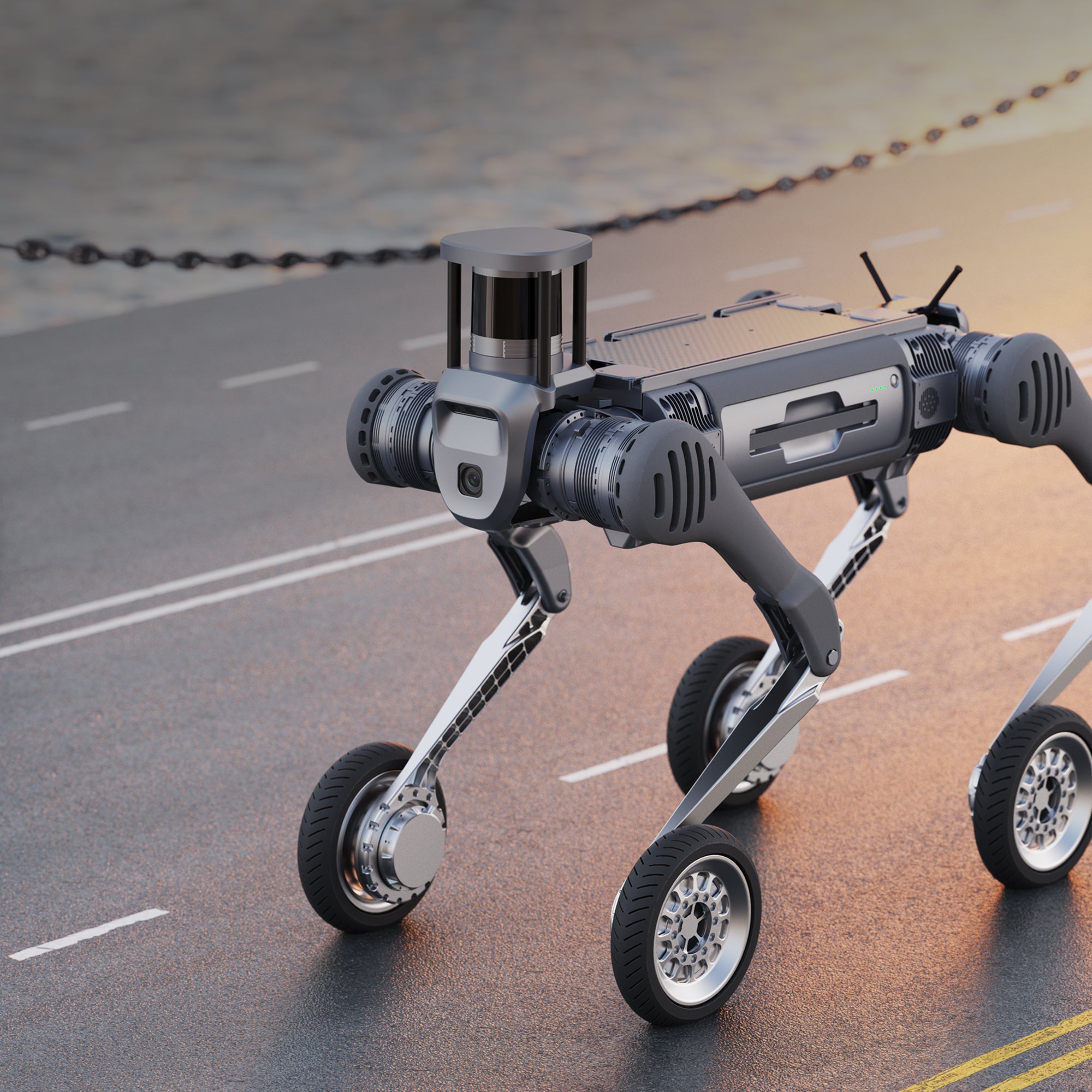

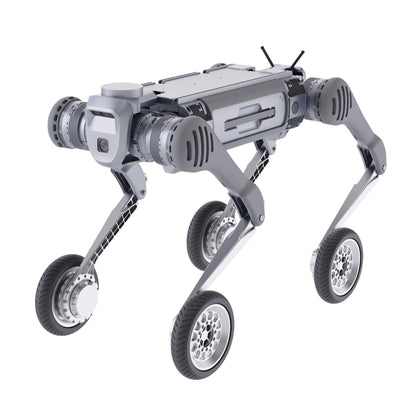

Unitree B2-W Industrial Quadruped Robotic Dog with Wheels
Introducing the Unitree B2-W, a state-of-the-art quadruped robot that seamlessly integrates legged mobility with wheeled efficiency. Designed for industrial applications, research, and advanced robotics development, the B2-W offers unparalleled versatility and performance.
Key Features:
-
Dual Mobility Modes: Effortlessly switch between legged and wheeled locomotion to adapt to diverse terrains and operational requirements.
-
High-Speed Capability: Achieves speeds up to 20 km/h, ensuring rapid deployment in time-sensitive scenarios.
-
Extended Endurance: With a battery capacity exceeding 2 kWh and a voltage of 58V, the B2-W can travel up to 50 km with a 40 kg load, supporting prolonged missions without the need for frequent recharging.
-
Robust Load Capacity: Supports a maximum standing load of 120 kg and a walking load exceeding 40 kg, making it suitable for transporting equipment or conducting inspections.
-

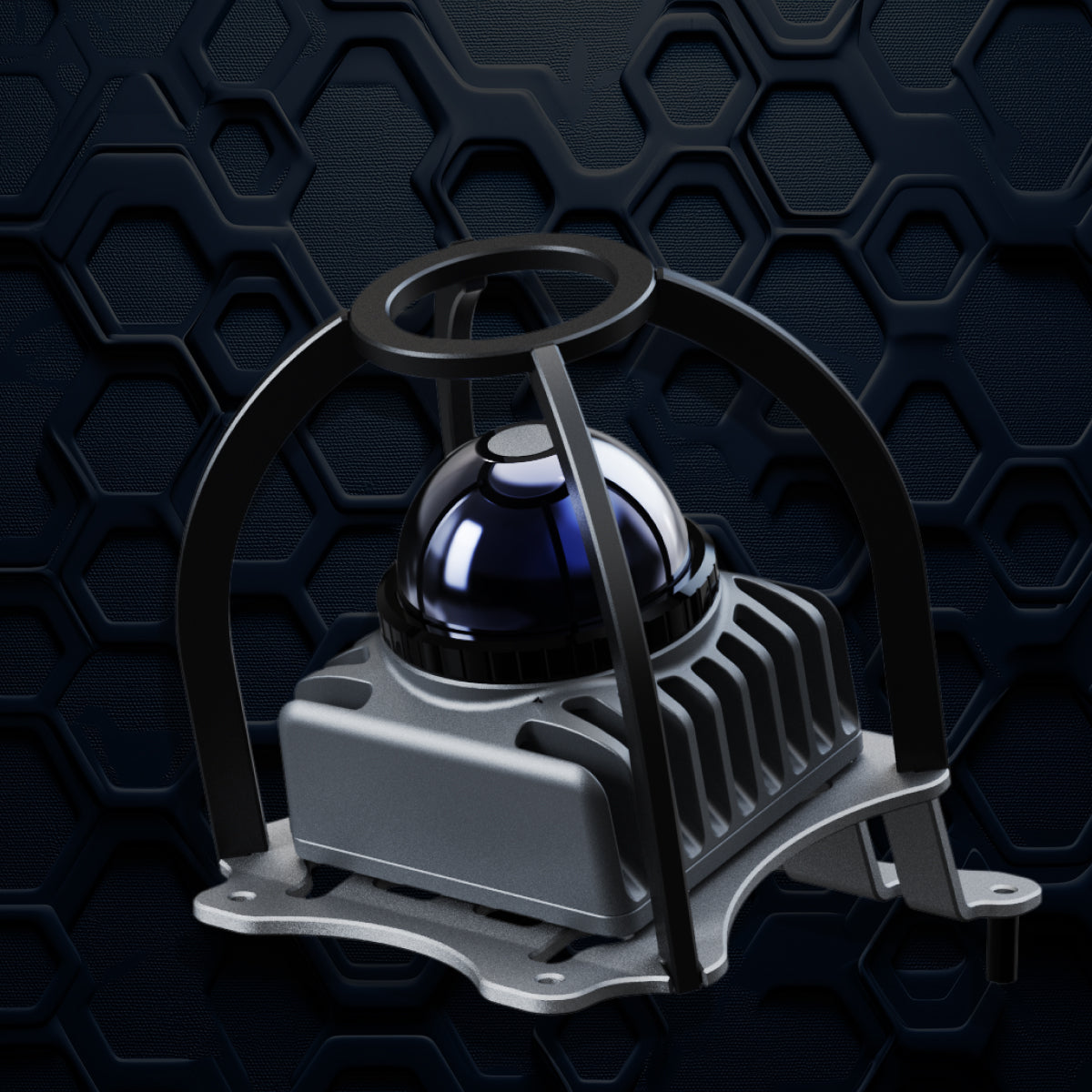

Advanced Sensing and Control: Equipped with depth cameras and optional 3D LiDAR, the B2-W offers precise environmental perception, enhancing autonomous navigation and obstacle avoidance capabilities.
-
All-Terrain Adaptability: Capable of climbing stairs with heights ranging from 20 to 25 cm, operating in temperatures between -20°C to 55°C, and handling climbing angles exceeding 45°, the B2-W is built to perform in challenging environments.
Technical Specifications:
-
Dimensions:
- Standing: Approximately 1098 mm x 550 mm x 758 mm
- Lying Prone: Approximately 950 mm x 550 mm x 450 mm
-
Weight: Approximately 75 kg (including battery)
-
Battery Capacity: Greater than 2 kWh, voltage 58V
-
Wheel Specifications:
- Diameter: 225 mm
- Maximum Speed: 57 rad/s
- Maximum Torque: 50 N·m
-
Ingress Protection: Rated at IP67, ensuring high resistance to dust and water ingress
-
Operating Temperature Range: From -20°C to 55°C
-
Control and Perception Options:
- Standard: Intel Core i5 (Platform Function), Intel Core i7 (User Development)
- Optional: Intel Core i7 and Jetson Orin NX (up to 3 devices)
The Unitree B2-W sets a new benchmark in robotic mobility and functionality, making it an ideal choice for professionals seeking a reliable and adaptable solution for complex tasks.
50 km
Maximum Distance
20 km/h
Maximum Speed
100 kg
Maximum Horizontal Pulling Force
B2-W TECH OVERVIEW
The Unitree B2-W opens up a world of possibilities with its seamless blend of speed, adaptability, and innovative design. Built to conquer diverse terrains and handle demanding tasks, it redefines what's possible for robotics in motion. Whether you're exploring new ways to optimize efficiency or tackling complex challenges, the B2-W’s unique capabilities inspire limitless potential across industries.
Request a QuoteUnstoppable Mobility Across Any Terrain

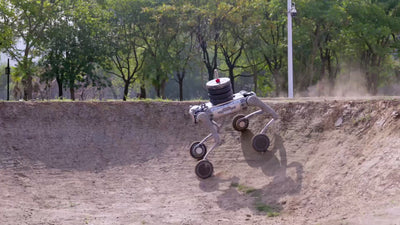

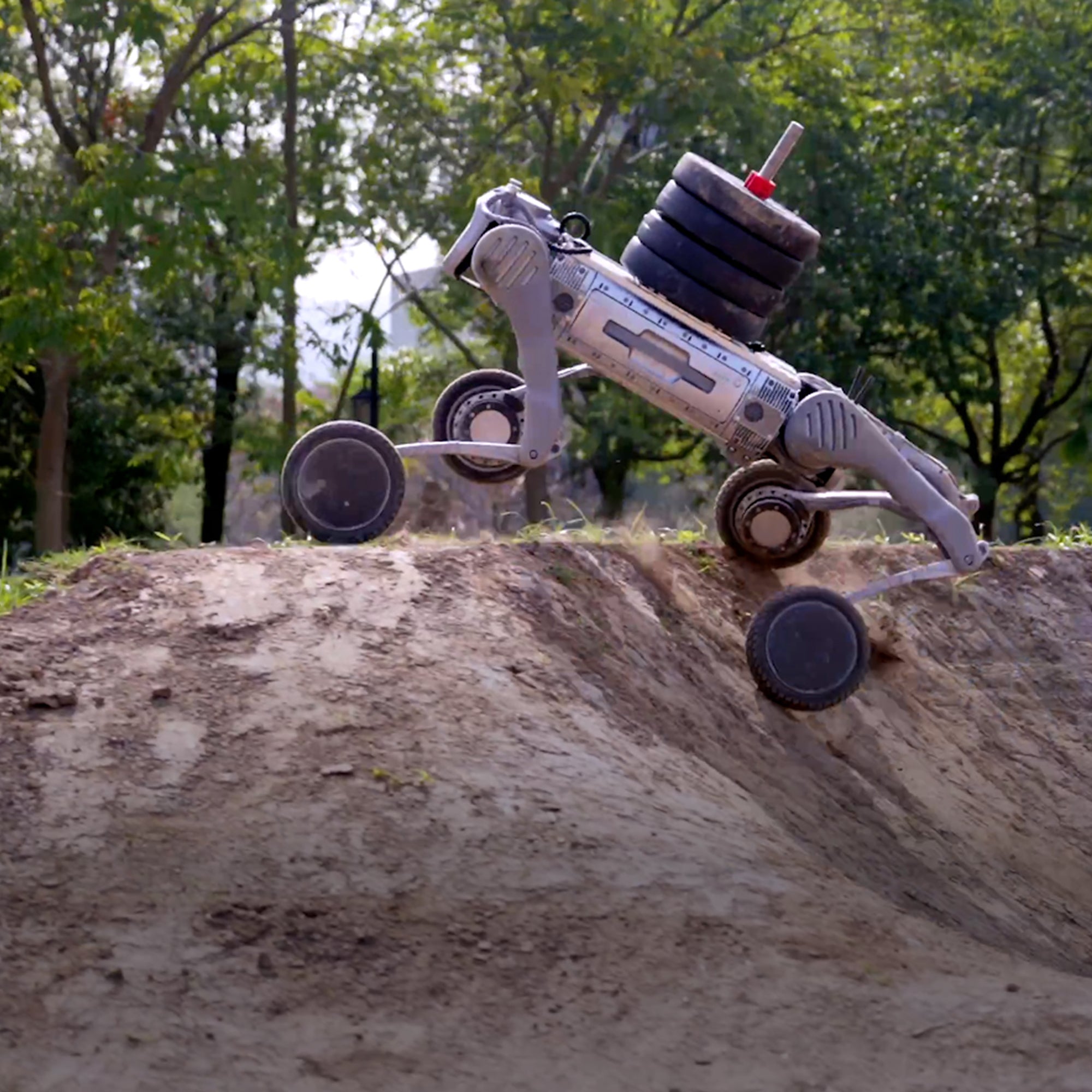

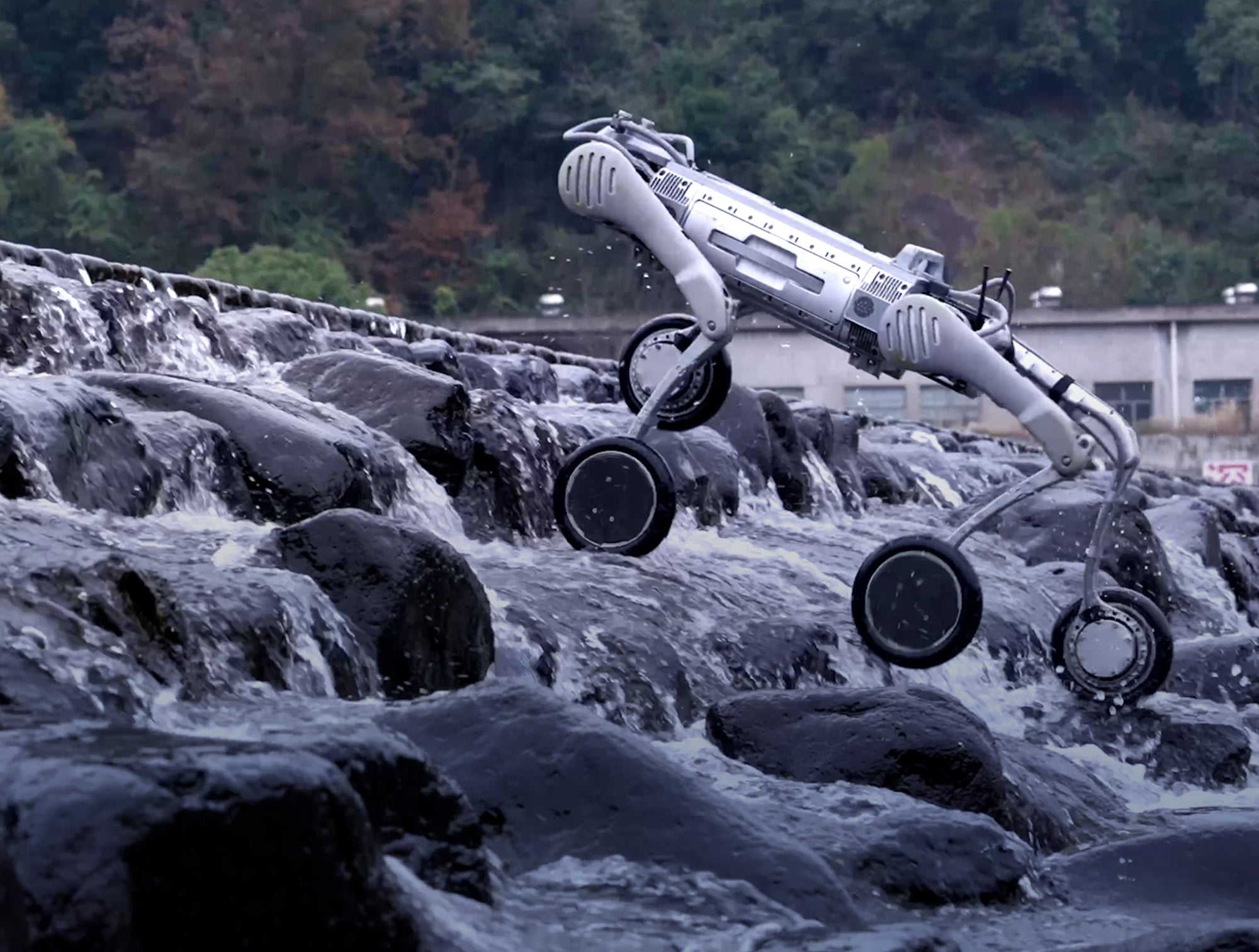

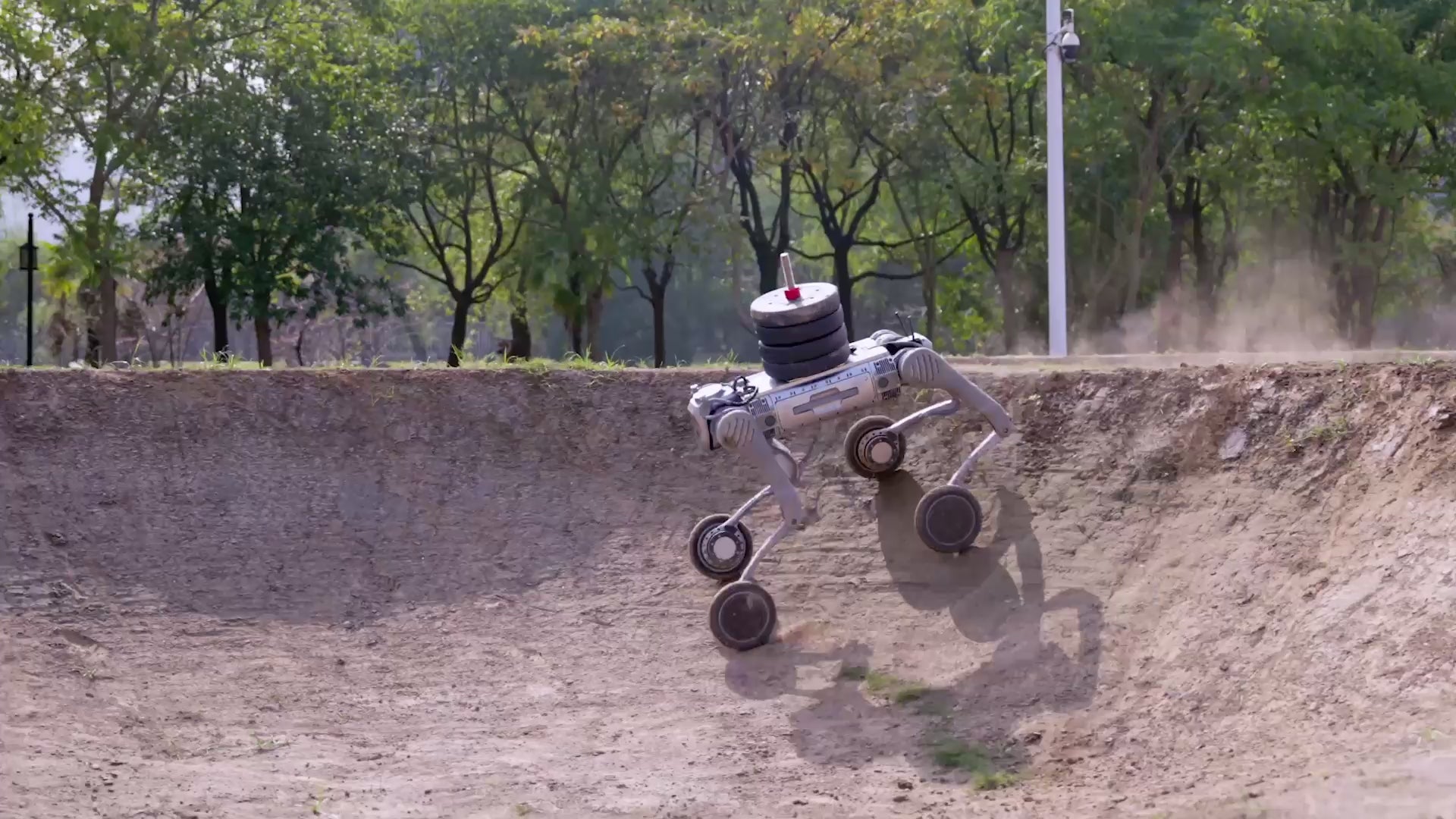

The B2-W is engineered for unparalleled versatility, conquering diverse and rugged terrains with ease. Whether it's navigating steep slopes, climbing stairs up to 25 cm, or gliding across gravel, grass, and uneven surfaces, this hybrid quadruped-wheeled robot is built to thrive in challenging environments. Its self-developed high-performance joints and dynamic motor control ensure stability and adaptability, making it the perfect solution for tasks that demand robust and reliable mobility. With the B2-W, no terrain is too tough.
Industrial Grade Performance
The B2 is a powerhouse that is engineered to excel in the most demanding environments. Powered by the Nvidia Orin, this advanced AI-driven marvel can effortlessly tackle complex tasks with efficiency and precision.
The hardware has been optimized to allow the B2 to travel up to 13 mph, carry 50 lbs of weight, and handle extreme conditions (-20°C to 55°C), making it a reliable companion even in the harshest of environments.
Whether it's accelerating productivity in industrial settings or pushing the boundaries of robotic performance, the B2 sets the standard for excellence, delivering unmatched performance where it matters most.
Advance Terrain Capabilities

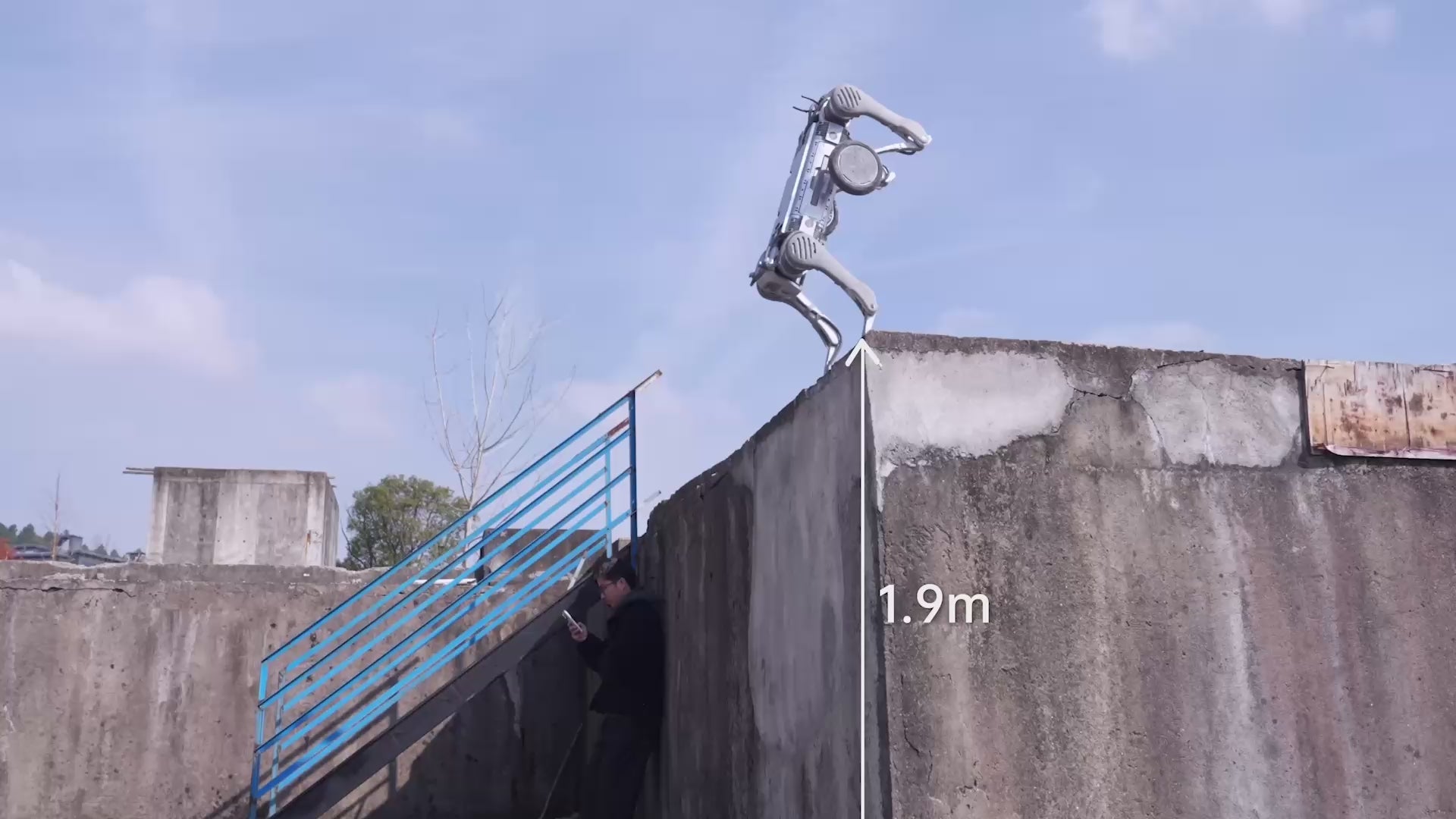

B2 was engineered to conquer diverse terrains. With the ability to ascend and descend staircases as steep as 45 degrees and with steps as large as 8-9 inches, traversing is a breeze. Its impressive climbing angle ensures seamless traversal across steep slopes and challenging landscapes. Additionally, boasting a maximum jump distance of 5 feet, it effortlessly overcomes obstacles with grace and efficiency. From rocky terrain to slippery surfaces, the Unitree B2 is primed for exploration and industrial tasks alike.

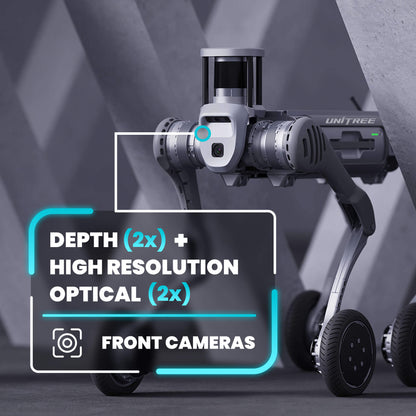

Detailed 3D Mapping

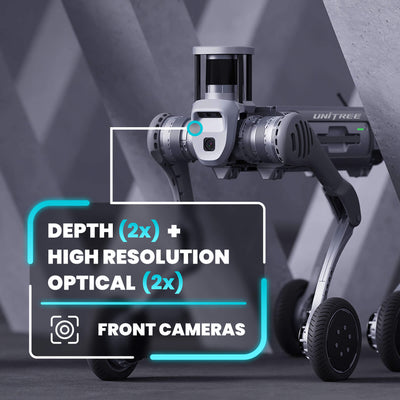

2 optical cameras, 2 depth cameras, and 1 3D LiDar to give users incredibly detailed and accurate mapping. Perfect for users who need accurate industrial inspection at any time, anywhere. Its infrared scanning capabilities can be used in various situations such as detecting anomalies, overheating components in machinery, or moisture intrusion in buildings.
Incredible Battery Life, Autonomous Charging
With a robust battery capacity of 45Ah, the B2 boasts an impressive operational endurance of up to 6 hours, ensuring prolonged usage without interruption. Its autonomous + fast charging feature allows seamless fast self-recharging, eliminating the need for manual intervention and ensuring optimal uptime without any user intervention. Once the B2 recognizes its battery is low, it will auto-locate its charging station, so you can say goodbye to charging worries and embrace uninterrupted performance with the B2.
