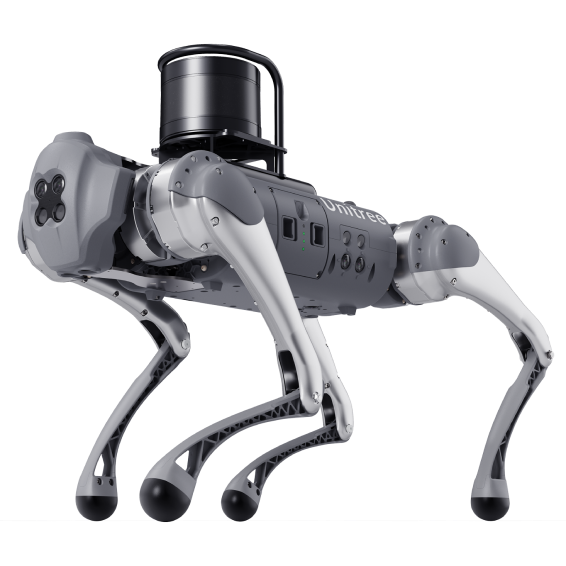

Unitree Go1 EDU
Plus (with Robosense 3D Lidar) Quadruped Robot Dog

Unitree Go1 EDU
Plus (with Robosense 3D Lidar) Quadruped Robot Dog

Regular price $22,499.99 USD
Regular price Sale price $22,499.99 USD
Sale Sold out
Droneblocks Curriculum

More payment Options

Free Shipping to the U.S.

Expected Delivery Date Sept. 30, 2022-Oct. 5,2022

Unitree Robotics is an outstanding pioneer in commercializing high-performance quadruped robots in the worldwide market, pushing mobile robots into people's lives.



They have now introduced the Go 1 EDU Plus for education and research purposes.

View full details

FULLY PROGRAMMABLE

Powerful AI processor dedicated to 16 core CPU + GPU
(384Core, 1.5TFLOPS)

Contains 3 NVIDIA Jeston processing units(2 Nanos, 1 NX), the Go1 EDU Plus is ready to be tapped into using the ROS open-source robotics suite.

Using Python, users can dive into all the complex problems the Go1 is ready to solve.

Great for exploring the innovation of robotic Quadrupeds.

GO1 EDU CAPABILITIES

Individual to the EDU Plus, 4G/5G Ready, Foot Force Sensors, Programming API

5 Super Sensory Stereo Depth Cameras

3 Hypersonics Sensors

4 Foot Force Sensors. Combined with Ai post-processing

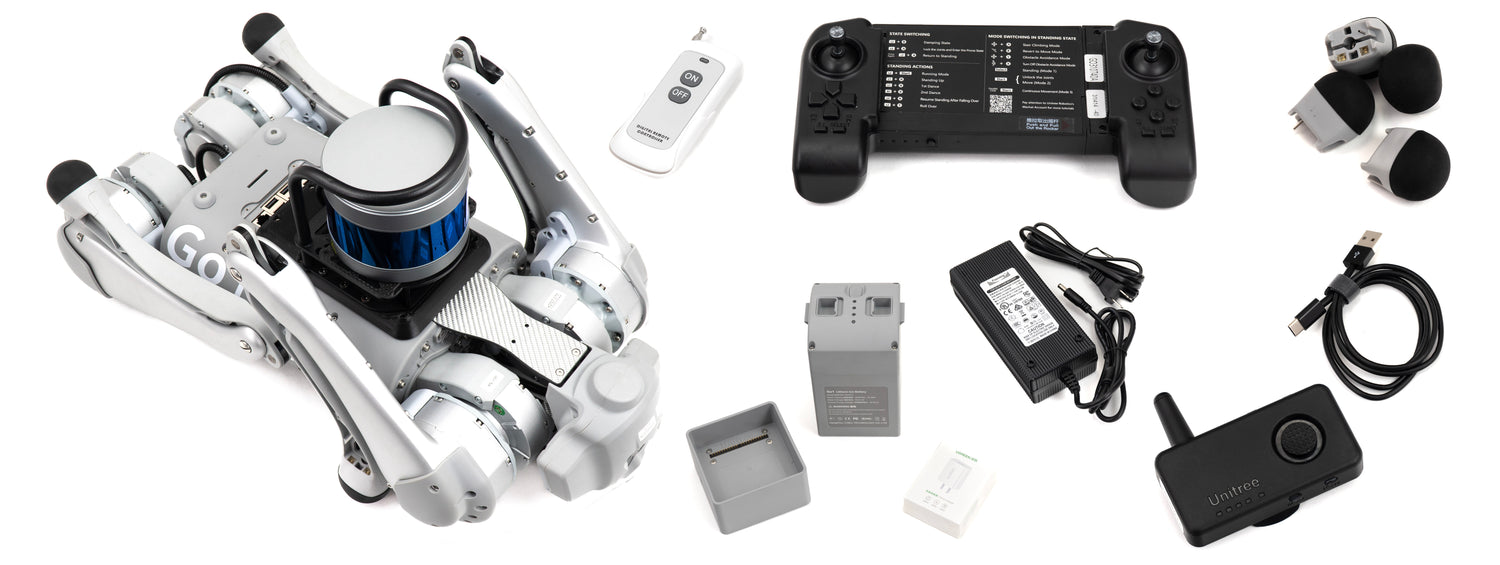

GO1 PRO EDU PLUS

3D LIDAR SYSTEM

Comes with Robosense RS-LiDAR-16, this is a 16-beam miniature LiDAR with 150m range and 2cm accuracy.


Ideal for environment mapping, autonomous driving, and UAV mapping.

Compact housing of the RS-LiDAR-16, mounted with 16 laser/detector pairs, rapidly spins and sends out high-frequency laser pulses to continuously scan the surrounding environment, collecting real-time 3D point clouds with reflectivity of objects to enable machines to “see.”



Provides reliable data for localization, navigation and obstacle avoidance.

*NOTE 3D cannot be added after EDU Plus purchase*

RS-LiDAR-M1 / SPECS
Laser Wavelength 905nm Points Per Second ~750,000pts/s ~1,500,000pts/s
Laser Safety Class 1 eye safe Automotive Ethernet 1000M Base T1
Range 200m(150m@10% NIST) Output ~750,000pts/s ~1,500,000pts/s
Laser Wavelength 905nm Points Per Second UDP packets over Ethernet
Blind Spot ≤0.5m Operating Voltage 9-32V
Accuracy(Typical) ±5cm(1sigma) Operating Temperature -40°C ~ +85°C
Frame Rate 10Hz Power Consumption 15W
Horizontal FoV 120°(-60°~+60°) Ingress Protection IP67, IP6K9K
Vertical FoV 25°(-12.5°~+12.5°) Time Synchronization gPTP
Horizontal Resolution 0.2°(Average) Dimensions 108mm x 110mm x 45mm
Vertical Resolution 0.2°(Average) Weight ~730g

UNITREE APP

iOS/ANDROID CAPABLE

Provides omnidirectional and ultra wide-angle video image transmission, which can observe the surroundings and terrain of the dog on the app, making the operation within the beyond visual range as simple and convenient as being on the scene.



The Go1 Pro and EDU also have Top View available in-app.

Curriculum Ready

We have paired with DroneBlocks to have a ready-to-go curriculum for education purposes and to explore the capabilities of the Go1 EDU platform.


Only Go1 EDUs are programmable with python, so start exploring, whether you're an individual or a sophisticated university.

LEARN MORE
  • ROS is an open-source robotics middleware suite. Although ROS is not an operating system but a collection of software frameworks for robot software development, it provides services designed for a heterogeneous computer cluster such as hardware abstraction, low-level device control, implementation of commonly used functionality, message-passing between processes, and package management.

  • Gazebo offers the ability to accurately and efficiently simulate populations of robots in complex indoor and outdoor environments. At your fingertips is a robust physics engine, high-quality graphics, and convenient programmatic and graphical interfaces. Best of all, Gazebo is free with a vibrant community. Gazebo simulation packages are provided.

  • Python is a high-level, general-purpose programming language. Its design philosophy emphasizes code readability with the use of significant indentation. Python has become the standard for a dynamic programming language.

Specification/
Version

  • Super Sensory System 1
  • Processor
  • Intelligent Side-follow System 1
  • RTT1 Transmission
  • Adapter
  • Controller
  • Payload
  • Heat Pipe Cooler
  • Speed
  • Graphic Processing API (OTA)
  • Research Programming API
  • Python Programming API
  • HAI 1 Human Recognition
  • APP Top View
  • 4G Or 5G
  • Foot Force Sensor
  • Multifunction Extension Interface
  • Lidar
