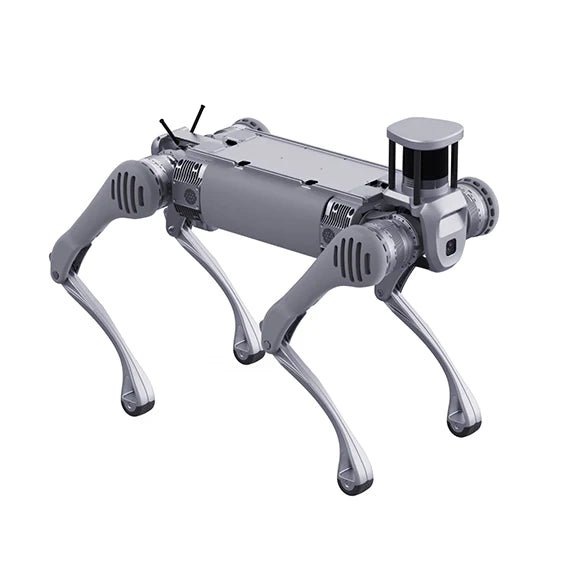

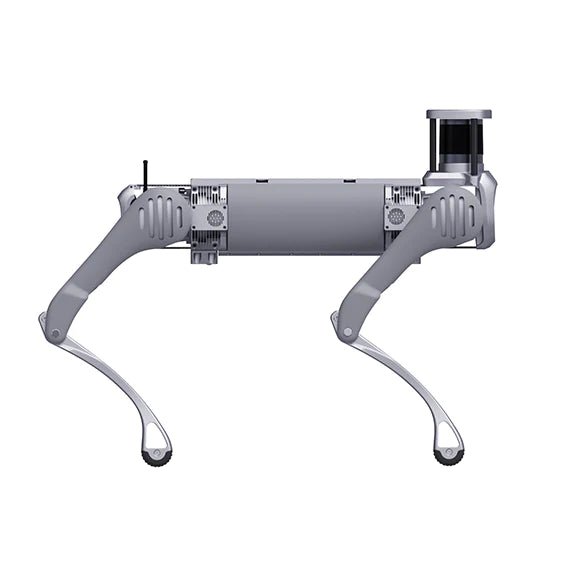

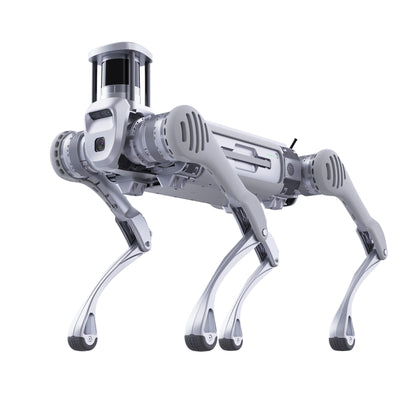

Unitree B2 Industrial Quadruped Robotic Dog with LiDAR
Key Features
Supported
Automotive-grade LiDAR
Max Payload (Standing)
Top Speed
Max Jump Distance
Large Capacity Battery
User Development
Platform Function
Weight (with Battery)
Max Climb Angle
Max Climb Height
Max Joint Torque
Introducing the Unitree B2 with LiDAR, a cutting-edge industrial-grade quadruped robot engineered for high-speed mobility, exceptional load capacity, and advanced terrain adaptability. Designed to excel in complex environments, the B2 is ideal for applications such as industrial automation, power inspections, emergency rescue operations, and educational research.
Note: Product images show additional hardware and may differ from the selected model. Contact us for specific configurations.
Product Description
Introducing the Unitree B2, a cutting-edge industrial-grade quadruped robot engineered for high-speed mobility, exceptional load capacity, and advanced terrain adaptability. Designed to excel in complex environments, the B2 is ideal for applications such as industrial automation, power inspections, emergency rescue operations, and educational research.
Key Features:
-
High-Speed Performance: Achieves speeds exceeding 6 m/s, positioning it among the fastest industrial quadruped robots available.
-
Robust Load Capacity: Supports a maximum standing load of 120 kg and a continuous walking load over 40 kg, enabling efficient transport of equipment and materials.
-
Extended Endurance: Capable of continuous operation for over 5 hours without load, and maintaining stable performance even when carrying a 20 kg load, ensuring reliability during prolonged missions.
-
Advanced Joint Performance: Equipped with self-developed motors delivering a peak torque of 360 N·m, enhancing flexibility and stability for complex industrial tasks.
-
All-Terrain Adaptability: Demonstrates superior obstacle-crossing ability, effortlessly navigating obstacles up to 40 cm in height, and maintaining stability on slippery or uneven surfaces.
-
Comprehensive Sensing Capabilities: Compatible with a variety of sensors, including 3D LiDAR, depth cameras, and optical cameras, providing enhanced environmental perception for safe and efficient task execution.
Technical Specifications:
-
Dimensions:
- Standing: Approximately 1098 mm x 550 mm x 758 mm
- Lying Prone: Approximately 950 mm x 550 mm x 450 mm
-
Weight: Approximately 75 kg (including battery)
-
Battery Capacity: Greater than 2 kWh, voltage 58V
-
Ingress Protection: Rated at IP67, ensuring high resistance to dust and water ingress
-
Operating Temperature Range: From -20°C to 55°C
-
Control and Perception Options:
- Standard: Intel Core i5 (Platform Function), Intel Core i7 (User Development)
- Optional: Intel Core i7 and Jetson Orin NX (up to 3 devices)
The Unitree B2 sets a new standard in robotic mobility and functionality, making it an indispensable asset for professionals and researchers seeking a reliable and adaptable solution for complex tasks.
Pairs well with
Buy it with:
Unitree B2 Industrial Quadruped Robotic Dog with LiDAR
Top speed
Max Standing Payload
Max. Jump Distance
B2 with LiDAR Specifications
Computing
Main CPU:
Intel Core i5 (Platform Function), Intel Core i7 (User Development)
High Computing Power Modules (Optional Configuration):
Intel Core i7 and Jetson Orin NX
(Maximum up to 3 devices)
Secondary Development Support:
Supported
Hardware
Chassis & Frame
- Dimensions L x W x H (Standing): 1098mm x 450mm x 645mm
- Dimensions (Crouching): 880mm x 460mm x 330mm
- Weight (with Battery): 60 kg
- Materials: Aluminum alloy and high-strength engineering plastic
Battery
- Battery Capacity: 45Ah(2250Wh)
- Battery Life: 4-6 hrs
- Voltage Range: 58V
Performance
Top Speed:
> 6 m/s
Max Joint Torque:
360 N·m
Max Payload (Standing):
120 kg
Max Payload (Walking):
>40 kg
Endurance Ability:
15km (with 20kg load)
20km (without load)
Max Climb Height:
40cm in forward direction
Max Climb Angle:
>45°
Continuous Stair Climbing Height:
20~25cm
Max Jump Distance:
> 1.6m
Ditch Jumping Width:
0.5~1.2m
Operating Temperature:
-20℃ ~ 55℃ / -4°F ~ 131°F

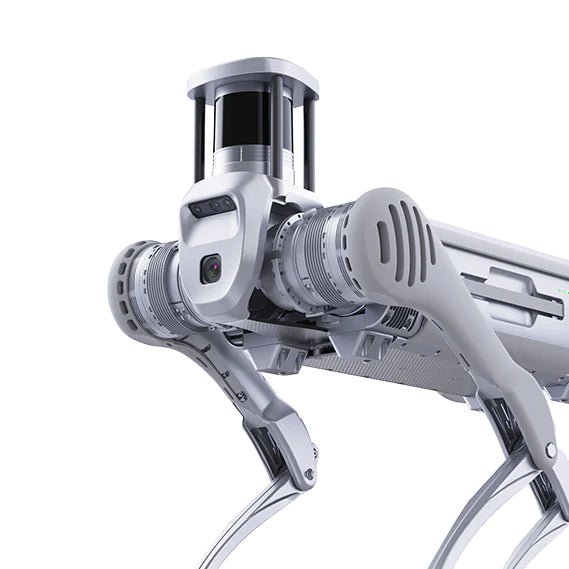

Cameras & Sensors
3D LiDAR:
32-Wire Automotive-grade
Front Cameras:
Depth (2x) + High Resolution Optical (2x)
Features
- OTA Upgrade System: Yes
- Manual Controller: Yes
- Intelligent Detection and Avoidance: Yes
- Water Resistance: IP67
Accessories Compatibility
- Z1 Arm: Yes
- Wireless Self Charging Pad: Yes
Reach out for more info on specific configurations
What's Included:
B2 Quadruped with LiDAR
Remote Control
B2 Battery (1x)
The B2 Quadruped
Industrial-Grade Power & Payload
The Unitree B2 is a heavy-duty quadruped robot built to meet the demands of modern industry. With high payload capacity, all-terrain mobility, and extended runtime, it’s designed to navigate complex environments—from power plants and warehouses to remote infrastructure and hazardous zones. Whether you’re automating inspections, enhancing site safety, or deploying robotics at scale, the B2 delivers reliable, adaptable performance that gets the job done.
Real-Time 3D Mapping and LiDAR Integration
Every inspection is captured, mapped, and analyzed in real time using advanced LiDAR scanning and imaging. The system generates a detailed digital twin of your site for precise 3D mapping, route planning, and asset monitoring. Operators gain immersive 3D views, live LiDAR data, and predictive insights that transform spatial data into actionable intelligence.
Key Features
All-Terrain Stability for Rough Environments
Exceptional balance and performance across slippery, uneven surfaces and stairs make the B2 reliable in unpredictable environments.
Advanced Obstacle Climbing Ability
Climbs vertical obstacles up to 40 cm while navigating debris and uneven ground with industrial-grade precision.
Fastest Quadruped Robot in Industry
Achieves top speeds over 6 m/s, outpacing all other industrial quadruped robots in high-speed mobility tests.
High-Jump Quadruped Mobility
With 360 N·m torque motors, the B2 can leap over 1.6-meter obstacles—delivering elite agility for industrial-grade quadrupeds.
Heavy Payload + Long Battery Life
Carries up to 40 kg for over 4 hours, with a 200% endurance boost for long missions and high-load operations.
Large Capacity Battery and Reliable Autonomous Charging
The B2 features a swappable high-capacity battery and supports autonomous charging (optional), enabling continuous operation in demanding industrial environments.
