Unitree B2 Customizable Industrial Robot
Key Features
Supported
Automotive-grade LiDAR
Max Payload (Standing)
Max Jump Distance
Large Capacity Battery
User Development
Platform Function
Weight (with Battery)
Max Climb Angle
Max Climb Height
Max Joint Torque
Note: Product images show various hardware configurations, contact us to customize yours for your specific needs
The Unitree B2 is an advanced industrial-grade quadruped robot designed to tackle the challenges of modern inspection, monitoring, and maintenance tasks. Engineered with precision, agility, and versatility, the B2 can be tailored to meet your unique operational requirements, offering solutions for everything from power inspections and petrochemical monitoring to security and emergency response.
Product Description
Unleash the Potential of Customizable Robotics for Industrial Applications
The Unitree B2 is an advanced industrial-grade quadruped robot designed to tackle the challenges of modern inspection, monitoring, and maintenance tasks. Engineered with precision, agility, and versatility, the B2 can be tailored to meet your unique operational requirements, offering solutions for everything from power inspections and petrochemical monitoring to security and emergency response.

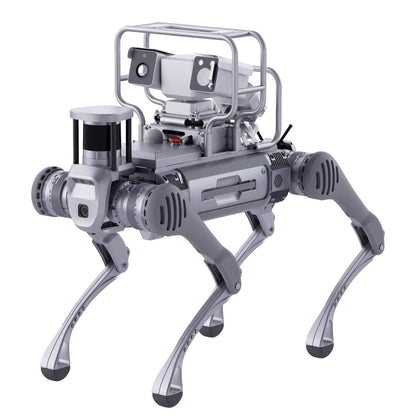

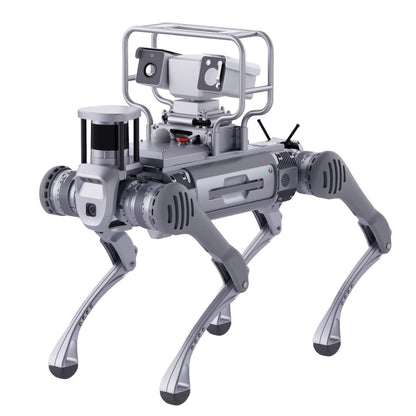

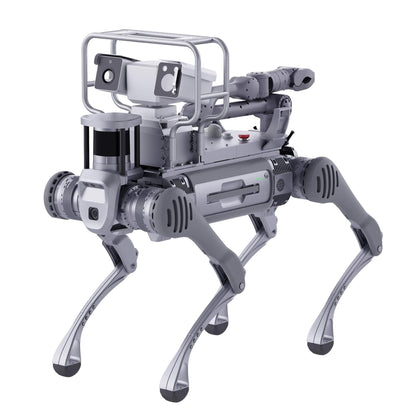

With its modular hardware and integration options, the B2 can be customized with multiple kits (XJ1 and XJ2 Variants) to fit your specific needs. Build your ideal inspection robot with a range of cutting-edge technologies such as dual-light PTZ cameras, 3D laser scanners, robotic arms, acoustic imagers, gas sensors, and more.
Get in touch with us today for a custom quote and build the ultimate inspection solution tailored to your business.
Key Customization Features:
Modular Inspection Add-Ons:
-
Dual-Light PTZ Camera
- Resolution: 640 x 512 or 384 x 288.
- Thermal Range: -20°C to 150°C / 0°C to 550°C with ±2% accuracy.
- Optical Zoom: 32x with 30-meter white light fill for enhanced low-light operations.
- 360° Continuous Rotation: Ensures seamless coverage in horizontal and vertical axes.
-
3D Laser and Acoustic Imagers
- 32-Line LiDAR: Provides high-resolution mapping for navigation and obstacle detection.
- Acoustic Imager: Monitors gas leaks, abnormal vibrations, and noise levels in industrial environments.
-
Robotic Arm with Z1 Pro Gripper
- Integrated D435i Depth Camera for precision manipulation and 3D sensing.
- Allows for object handling, switch toggling, and detailed inspection tasks.
-
Gas Detection Sensors
- Ideal for environments like petrochemical plants and underground mines.
- Provides real-time monitoring for safety-critical operations.
Industry-Leading Features Across All Variants:
Performance Specs:
-
High-Speed Mobility:
- Speeds up to 6 m/s for rapid deployment across large areas.
-
Load Capacity:
- Carries up to 120 kg (standing) or 40 kg (walking) with ease.
-
Battery Endurance:
- Operates for 4-6 hours on a single charge, enabling long inspection cycles.
-
Terrain Adaptability:
- Climbs stairs (up to 25 cm), obstacles (up to 40 cm), and handles slopes up to 45°.
-
IP67-Rated Durability:
- Fully dustproof and waterproof for extreme environments.
-
Temperature Tolerance:
- Operates between -40°C and 55°C, making it ideal for challenging climates.
Digital Twin and Intelligent Inspection Management:
-
3D Visualization Platform:
- Monitor real-time operations and inspection paths through a digital twin system.
- Plan inspection routes with first-person perspective and detect anomalies instantly.
-
AI-Powered Analysis:
- Conduct meter readings, thermal imaging, defect detection, and more using intelligent recognition algorithms.
-
Data-Driven Insights:
- Historical data, life cycle analysis, and risk assessments for predictive maintenance.
Applications:
The Unitree B2 is purpose-built for diverse industries, delivering exceptional versatility for a wide range of applications:
- Power Stations and Grids: Thermal imaging, gas leak detection, and switch inspections.
- Petrochemical Plants: Monitoring pipelines, liquid levels, and emissions.
- Mining and Railways: Inspecting underground facilities, slopes, and tracks.
- Smart Factories: Digital automation and comprehensive equipment monitoring.
- Emergency Response: Rapid deployment in hazardous areas for search and rescue.
Why Choose the Unitree B2?
- Customizable to meet your exact needs with a variety of advanced hardware options.
- Designed for rugged industrial environments with unmatched mobility and adaptability.
- Equipped with intelligent management software for seamless data collection and analysis.
- Proven in diverse industries, from power stations to petrochemical plants and beyond.
Contact us today for a quote and let us help you build the ideal inspection solution for your operation.
Pairs well with
Unitree B2 Customizable Industrial Robot
Top speed
Max Standing Payload
Max. Jump Distance
B2 Base Specifications
Computing
Main CPU:
Intel Core i5 (Platform Function), Intel Core i7 (User Development)
High Computing Power Modules (Optional Configuration):
Intel Core i7 and Jetson Orin NX
(Maximum up to 3 devices)
Secondary Development Support:
Supported
Hardware
Chassis & Frame
- Dimensions L x W x H (Standing): 1098mm x 450mm x 645mm

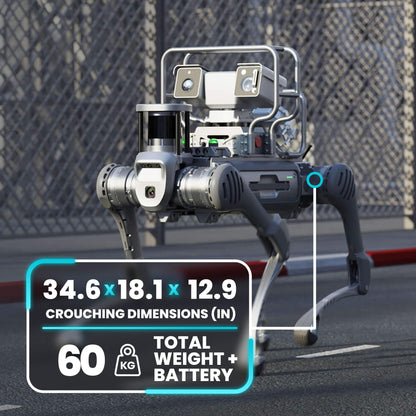

- Dimensions (Crouching): 880mm x 460mm x 330mm
- Weight (with Battery): 60 kg
- Materials: Aluminum alloy and high-strength engineering plastic
Battery
- Battery Capacity: 45Ah(2250Wh)

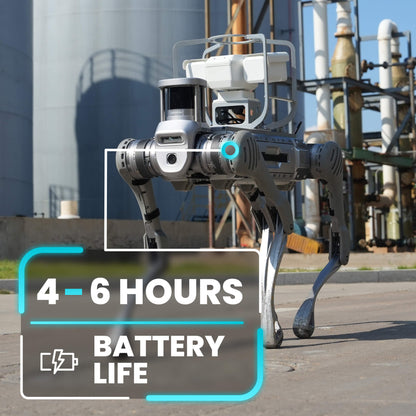

- Battery Life: 4-6 hrs
- Voltage Range: 58V
Performance

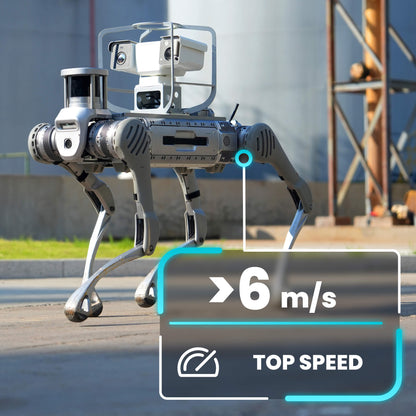

Top Speed:
> 6 m/s
Max Joint Torque:
360 N·m
Max Payload (Standing):
120 kg
Max Payload (Walking):
>40 kg
Endurance Ability:
15km (with 20kg load)
20km (without load)

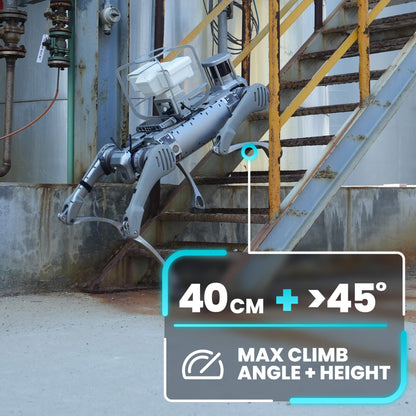

Max Climb Height:
40cm in forward direction
Max Climb Angle:
>45°
Continuous Stair Climbing Height:
20~25cm
Max Jump Distance:
> 1.6m
Ditch Jumping Width:
0.5~1.2m
Operating Temperature:
-20℃ ~ 55℃ / -4°F ~ 131°F

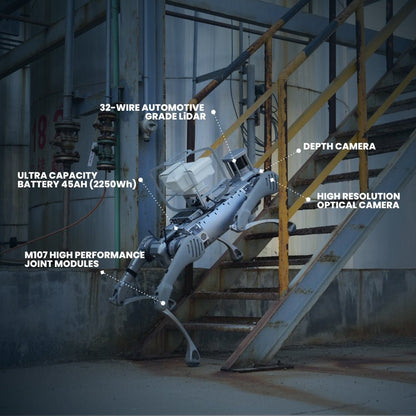

Cameras & Sensors
3D LiDAR:
Not Included

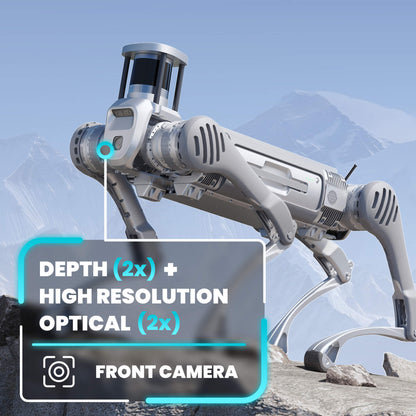

Front Cameras:
Depth (2x) + High Resolution Optical (2x)
Features
- OTA Upgrade System: Yes
- Manual Controller: Yes
- Intelligent Detection and Avoidance: Yes
- Water Resistance: IP67
Accessories Compatibility
- Z1 Arm: Yes
- Wireless Self Charging Pad: Yes
Reach out for more info on specific configurations
What's Included:
B2 Quadruped with LiDAR
Remote Control
B2 Battery (1x)
Additional Hardware (Customizable)
The B2 Quadruped
Industrial-Grade Power & Payload

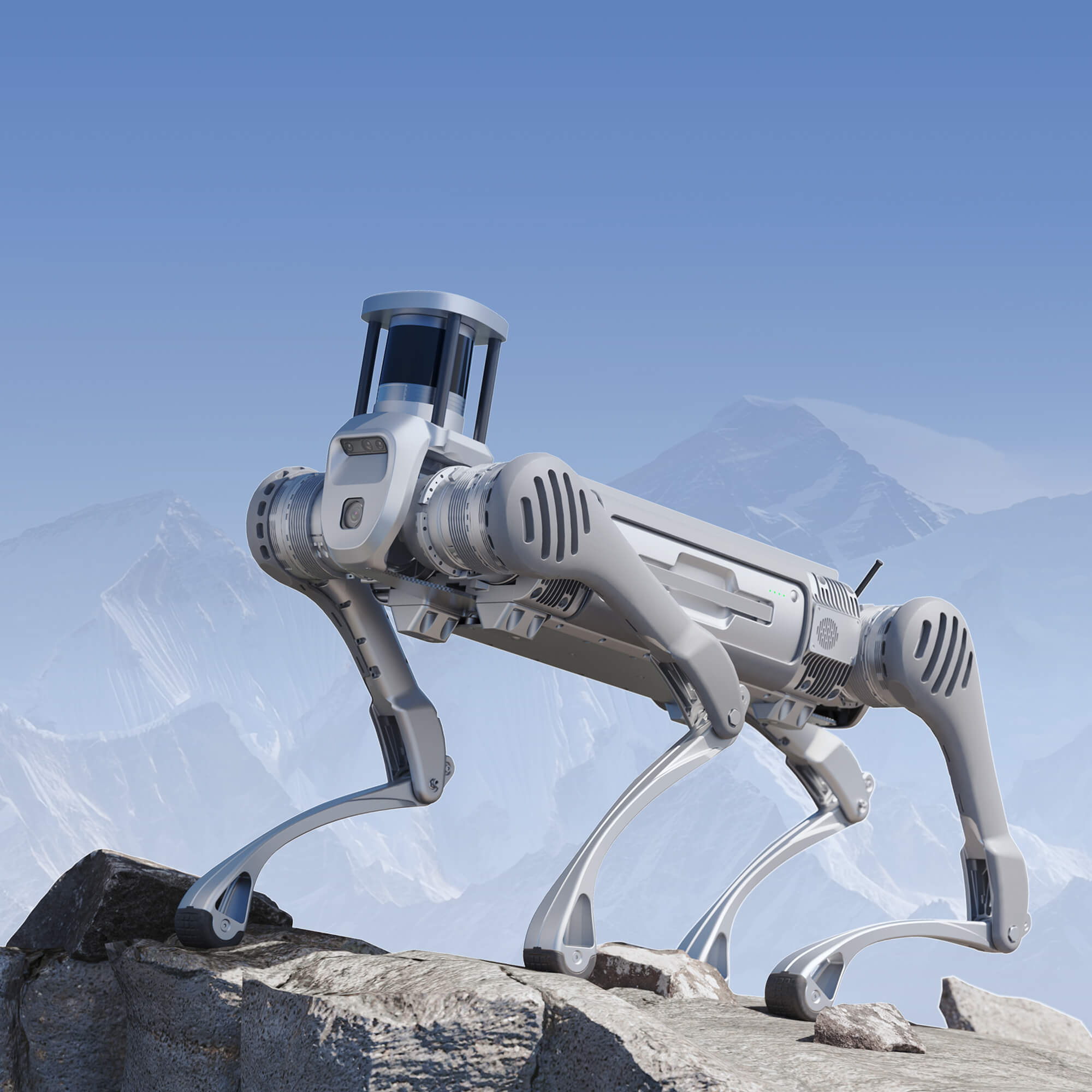

The Unitree B2 is a heavy-duty quadruped robot built to meet the demands of modern industry. With high payload capacity, all-terrain mobility, and extended runtime, it’s designed to navigate complex environments—from power plants and warehouses to remote infrastructure and hazardous zones. Whether you’re automating inspections, enhancing site safety, or deploying robotics at scale, the B2 delivers reliable, adaptable performance that gets the job done.

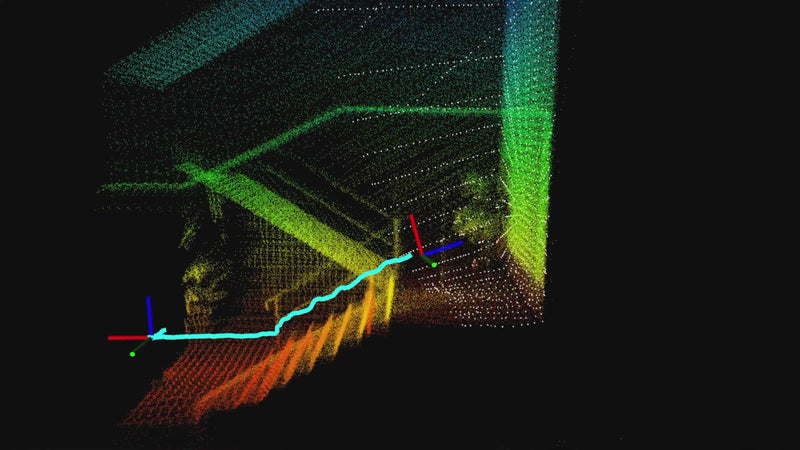

Real-Time 3D Mapping and LiDAR Integration
Every inspection is captured, mapped, and analyzed in real time using advanced LiDAR scanning and imaging. The system generates a detailed digital twin of your site for precise 3D mapping, route planning, and asset monitoring. Operators gain immersive 3D views, live LiDAR data, and predictive insights that transform spatial data into actionable intelligence.
Key Features

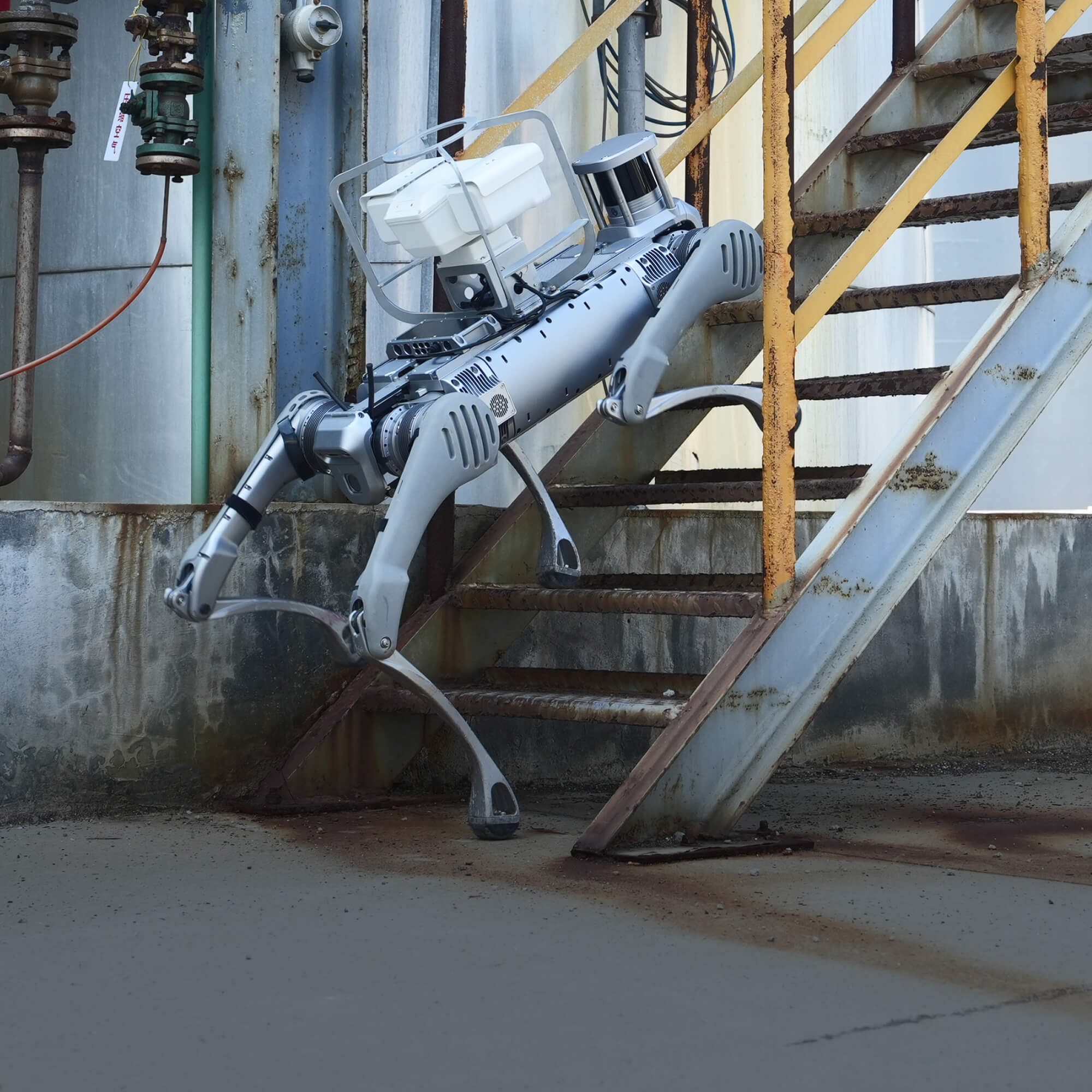

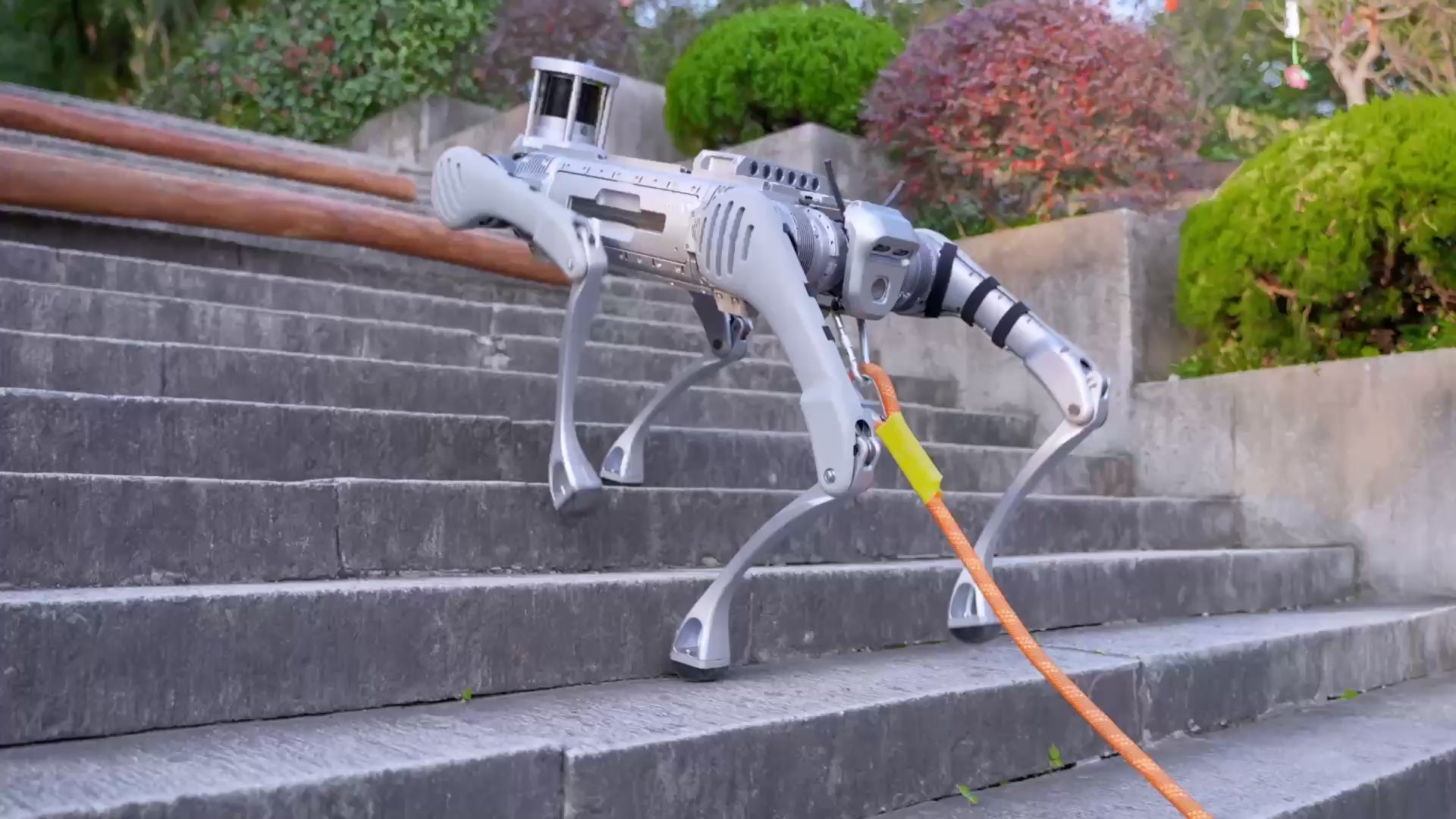

All-Terrain Stability for Rough Environments
Exceptional balance and performance across slippery, uneven surfaces and stairs make the B2 reliable in unpredictable environments.

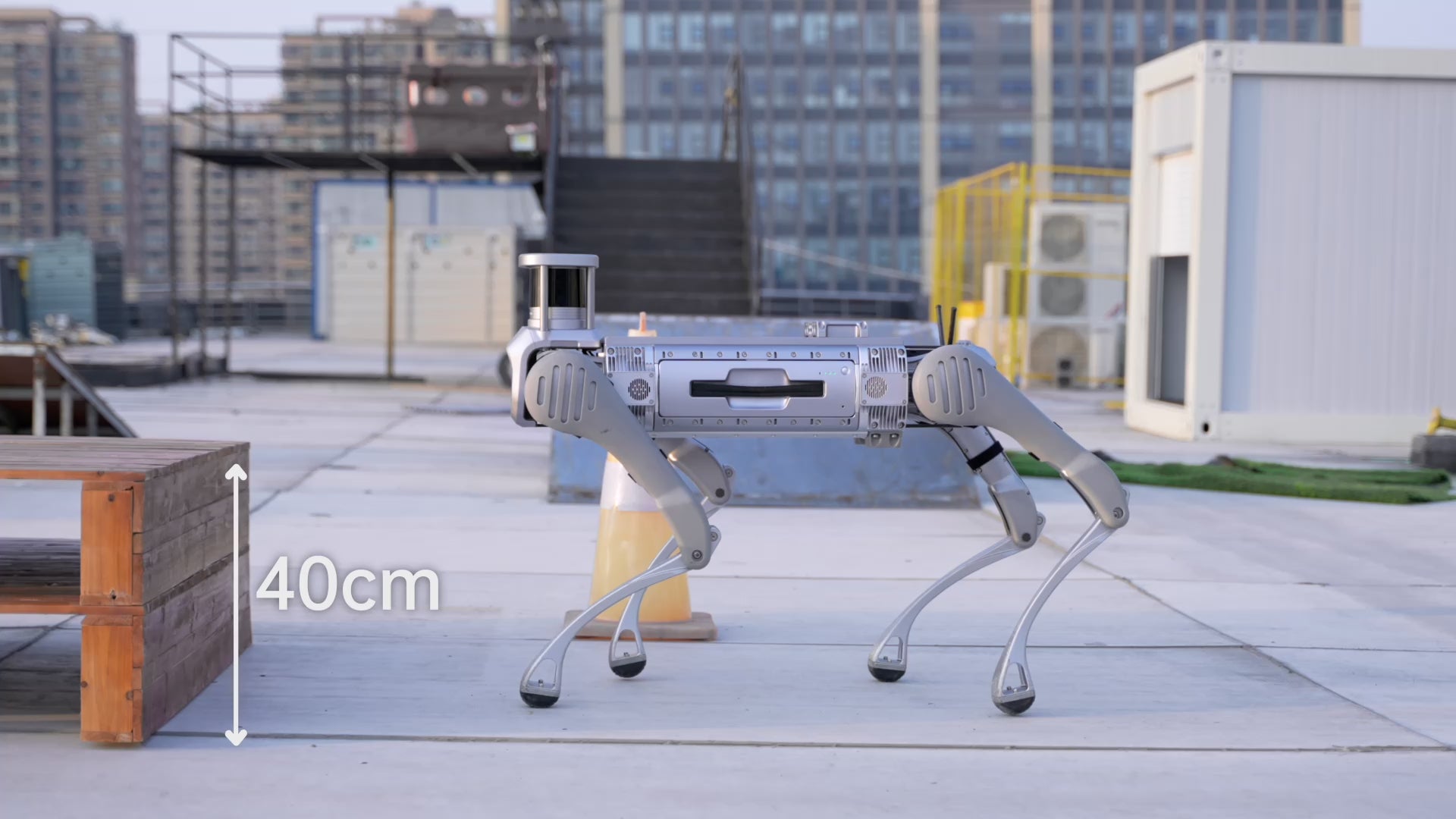

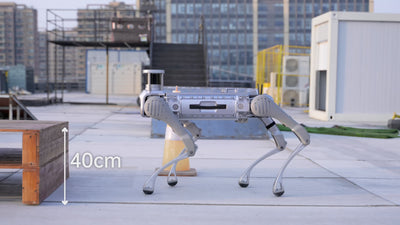

Advanced Obstacle Climbing Ability
Climbs vertical obstacles up to 40 cm while navigating debris and uneven ground with industrial-grade precision.

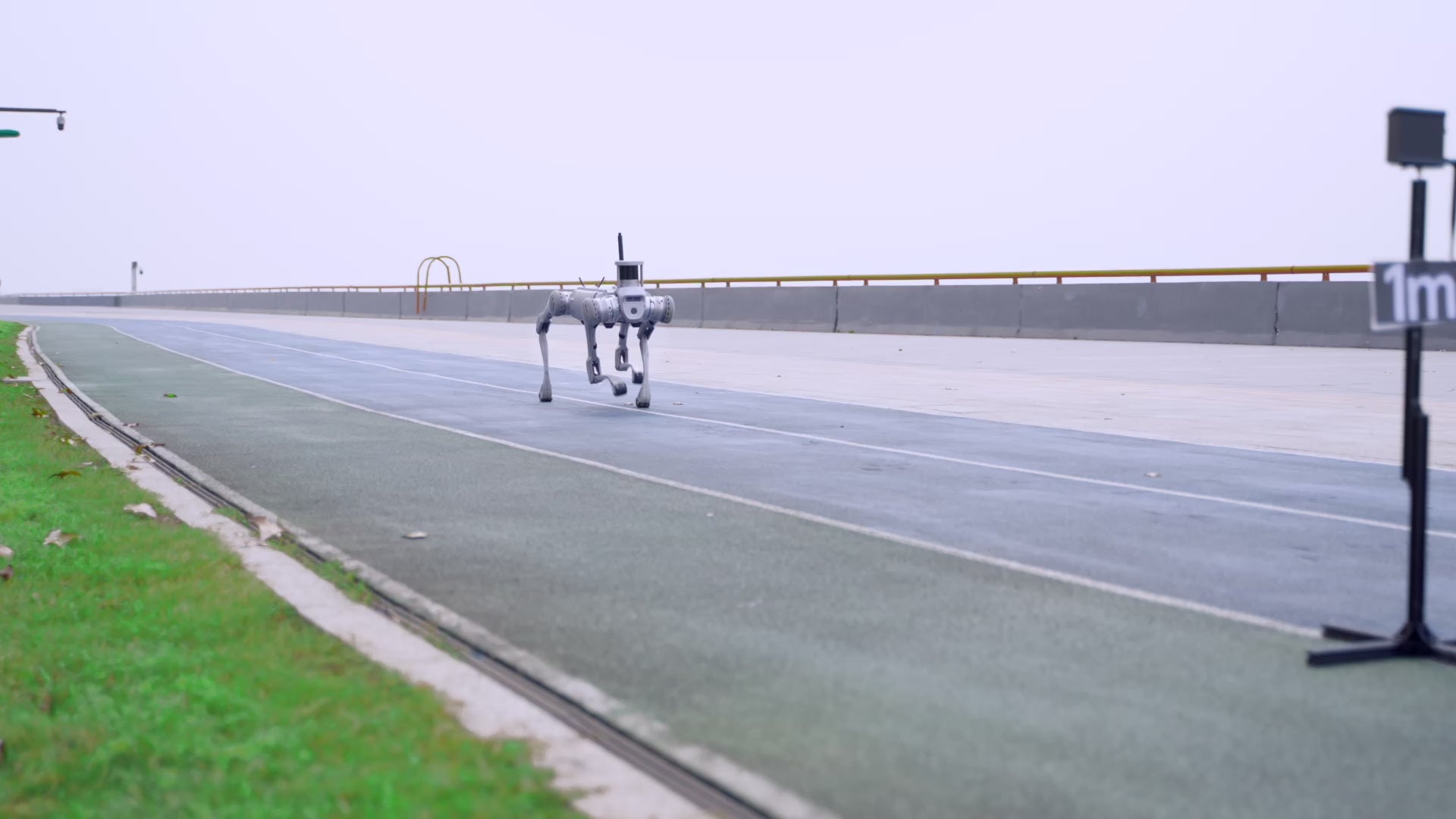

Fastest Quadruped Robot in Industry
Achieves top speeds over 6 m/s, outpacing all other industrial quadruped robots in high-speed mobility tests.

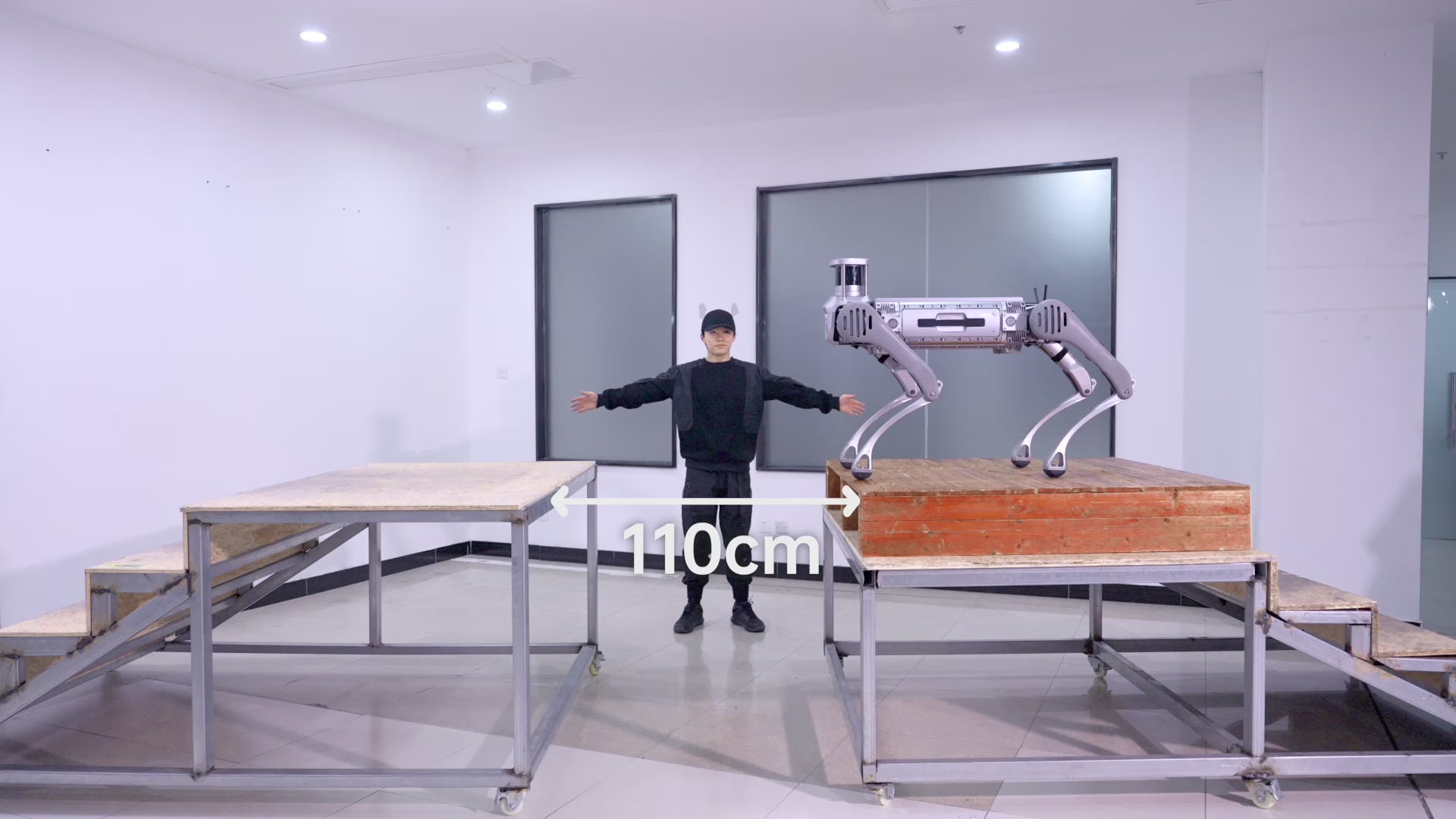

High-Jump Quadruped Mobility
With 360 N·m torque motors, the B2 can leap over 1.6-meter obstacles—delivering elite agility for industrial-grade quadrupeds.

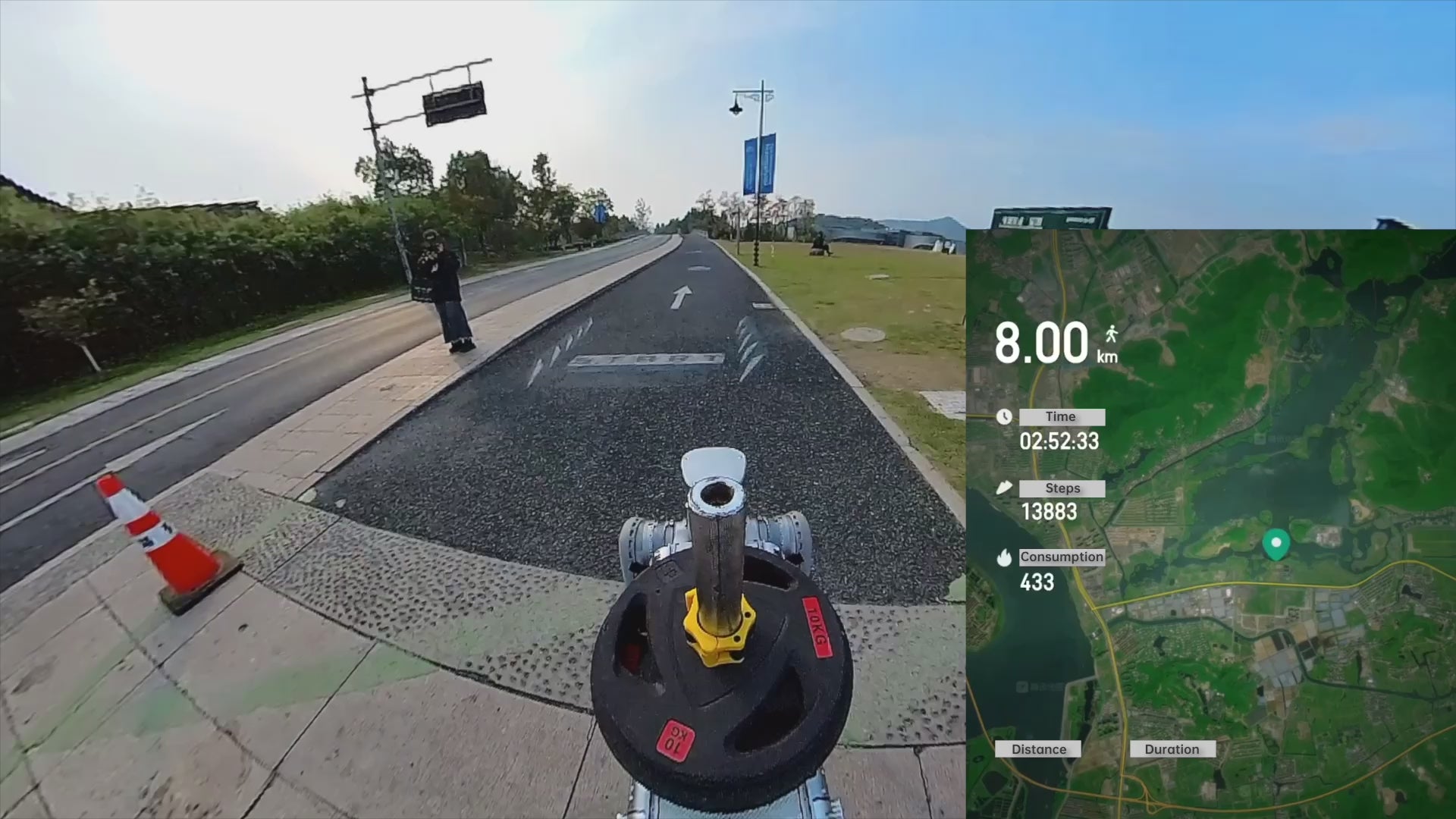

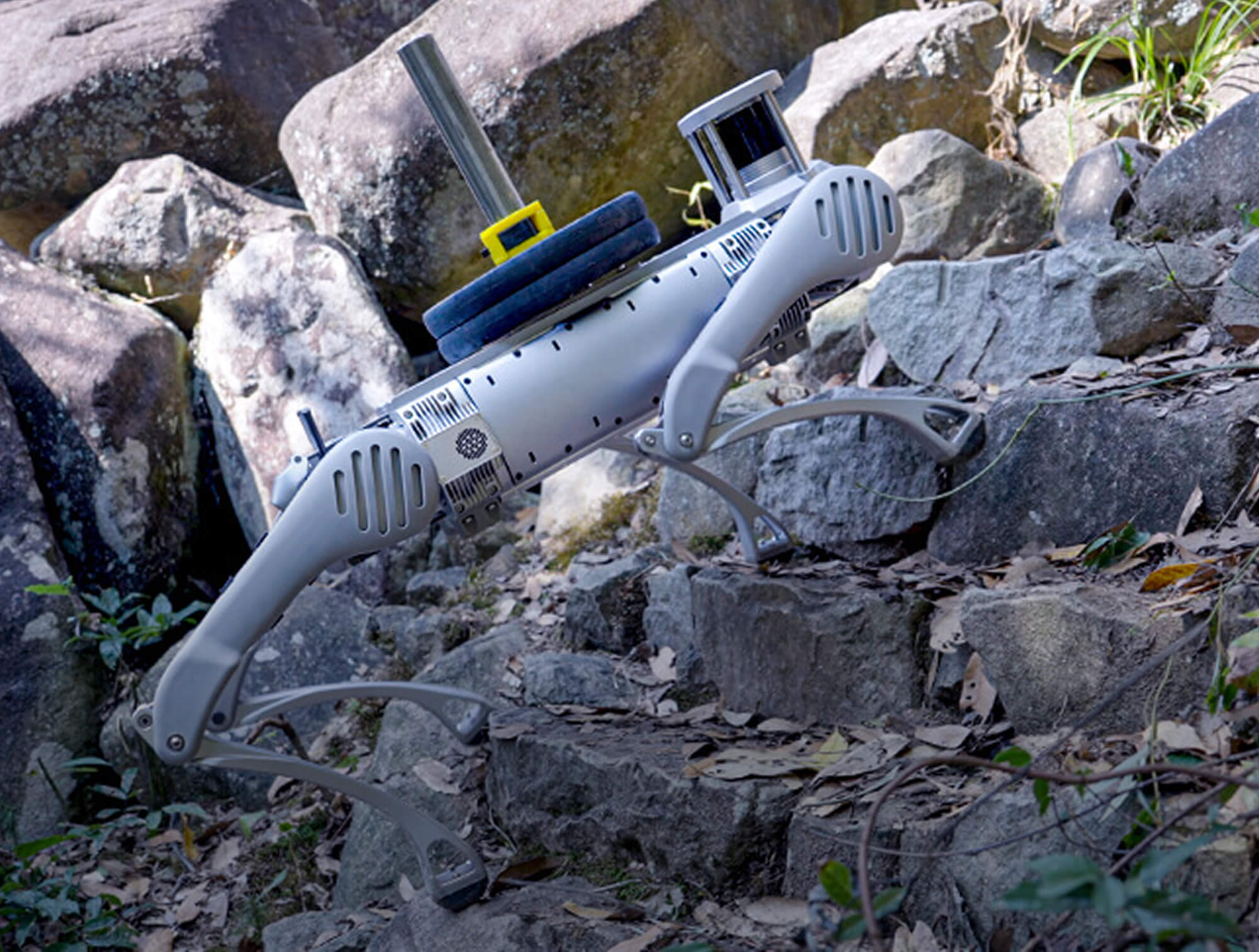

Heavy Payload + Long Battery Life
Carries up to 40 kg for over 4 hours, with a 200% endurance boost for long missions and high-load operations.

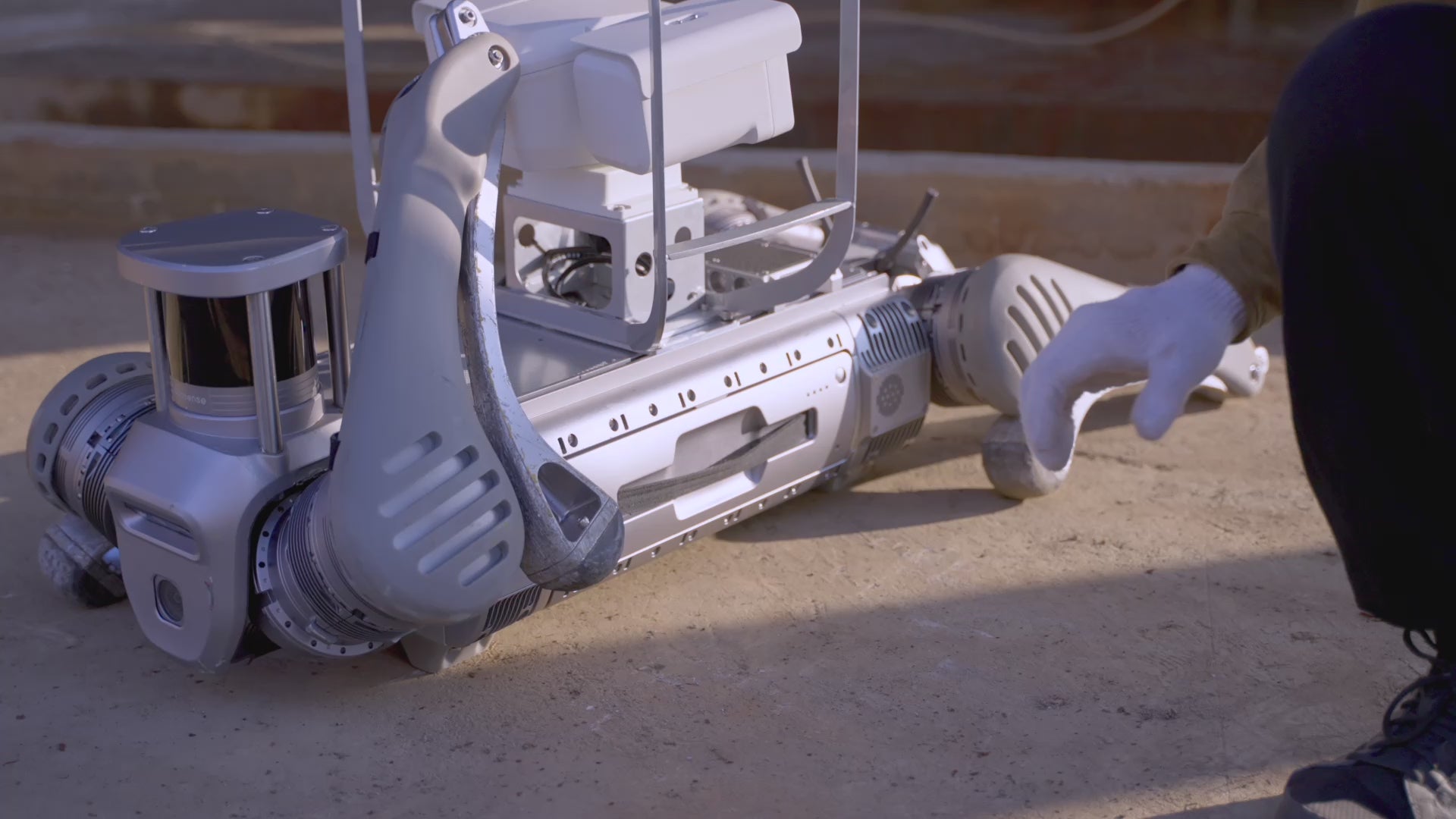

Large Capacity Battery and Reliable Autonomous Charging

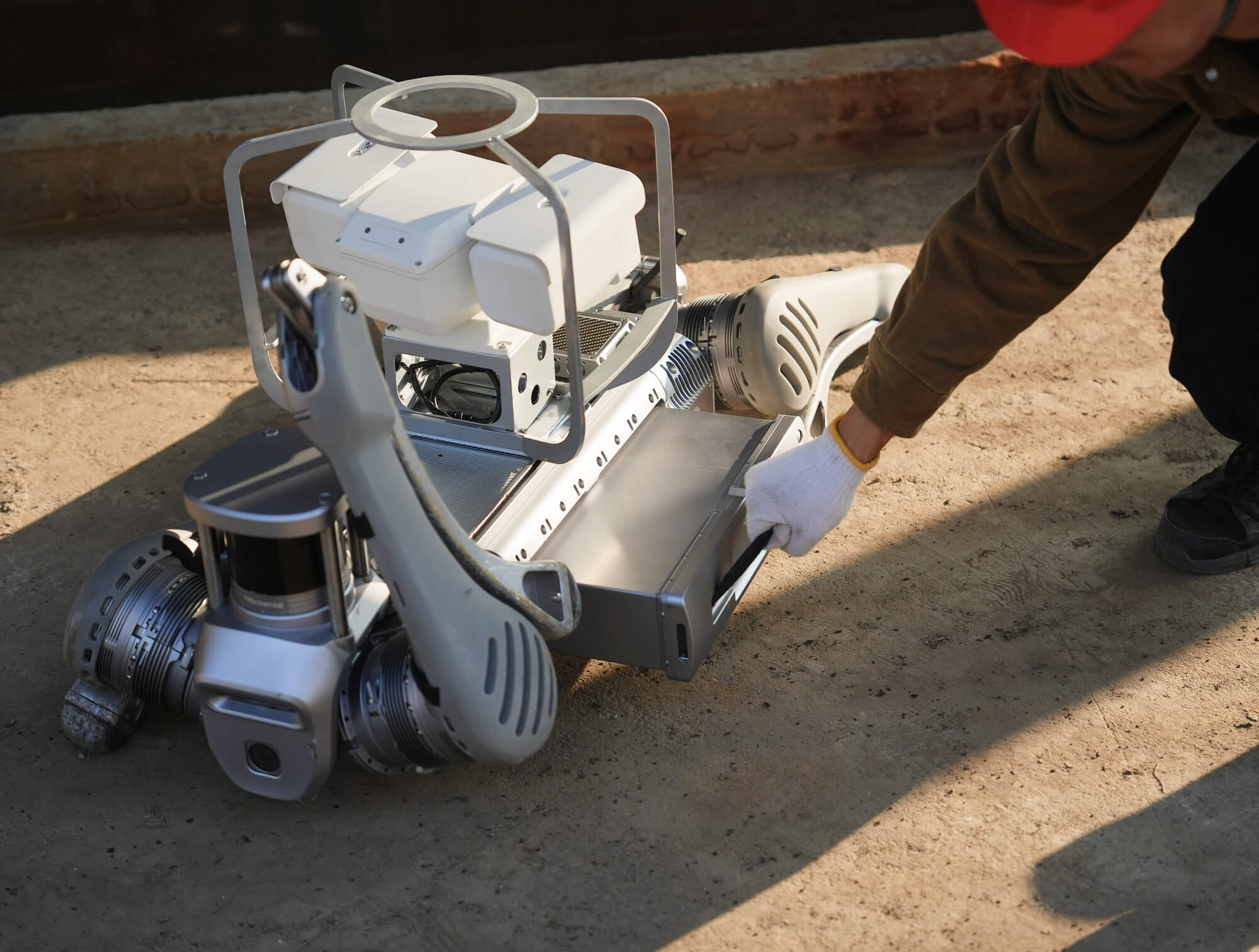

The B2 features a swappable high-capacity battery and supports autonomous charging (optional), enabling continuous operation in demanding industrial environments.
How it works
Place Your Order
Order directly through our website or use the form below to connect with a product expert first. Delivery timelines depend on model availability, but we ship as quickly as possible — and we’ll keep you updated every step of the way.
Setup & Configuration
Every robot is different. Depending on your selected model and accessories, configuration can be plug-and-play or require a tailored setup. We offer optional demos, consultations, and ongoing support to ensure you’re up and running with confidence.
Get up and GO
Once set up, your robot is ready to roll. Preloaded actions make it easy to get started, while manual controls and custom routines let you push the limits of what’s possible.
